BehaviorColorLED NameNumber
Solid - Powered OnGreenPower3

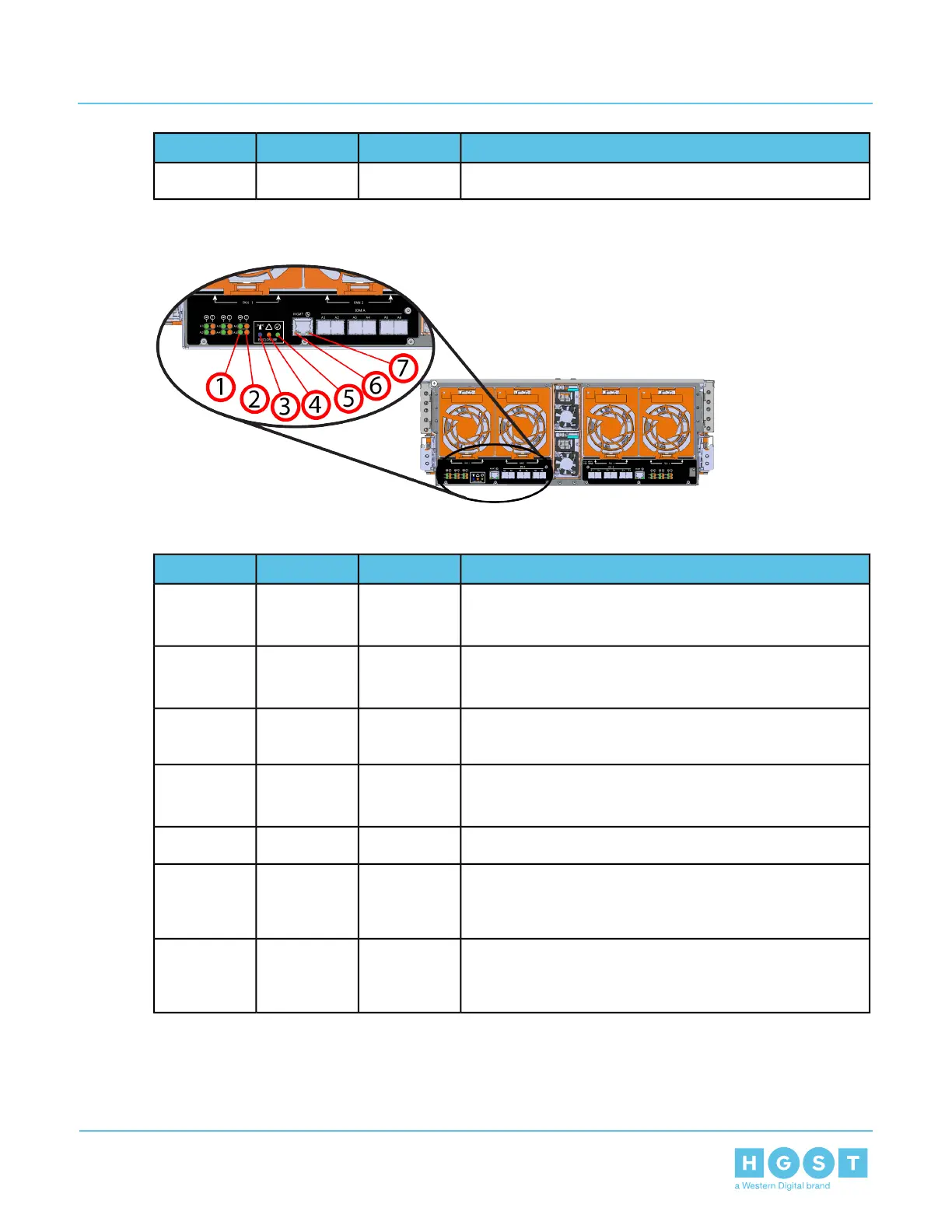

Figure 6: Rear IO LEDs
Table 8: Rear LED Identification
BehaviorColorLED NameNumber
Solid SAS Cable Connected
GreenSAS Link
Status
1
Off SAS Cable Not Connected
Blink @ 1 Hz SAS connection fault
AmberSAS Fault
Status
2
Off No SAS connection fault
Blink @ 1 Hz Blinks only when Identication has been
activated. Will blink when any component is identied.
BlueIdentication3
Blink @ 1 Hz –Enclosure has a fault
AmberFault4
Off Enclosure has no fault
Solid - Powered OnGreenPower5
Off - Operating at 10 Mbps
Green Solid - Operating at 100 Mbps
Amber Solid - Operating at 1Gpbs
Green/AmberEthernet
Connectors
Link/Activity
6
Off - No Connection
Solid - Connected
Blink - Activity
GreenEthernet
Connector
Speed
7
17
