Note: Each cable must be given enough slack at the connector end to operate smoothly. For
the upper CMA allow 20" - 21" (508 – 533.4mm) between the end of the connector and the first
basket. Make sure to route all of the upper CMA cables under the lower CMA cables.

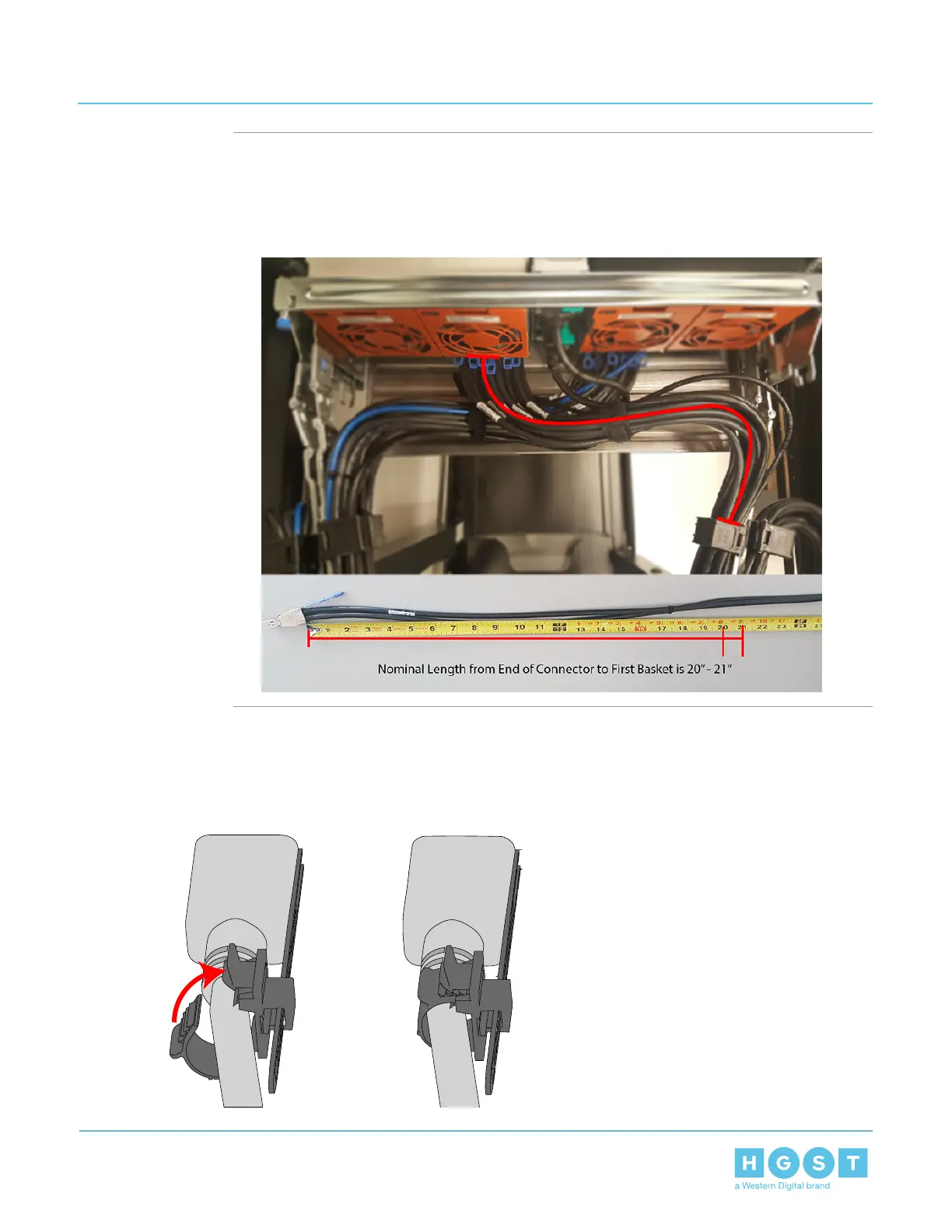

Figure 167: Nominal Cable Length at Connectors
e) Loop the retention clip on the PSU cables around the cable and pinch it until the clip catches and
locks in place.
Figure 168: Cable Retention Mechanism
