CMA, and the cables connected to the ports for IOM A (left hand side when facing the rear) should be connected
to the lower CMA.

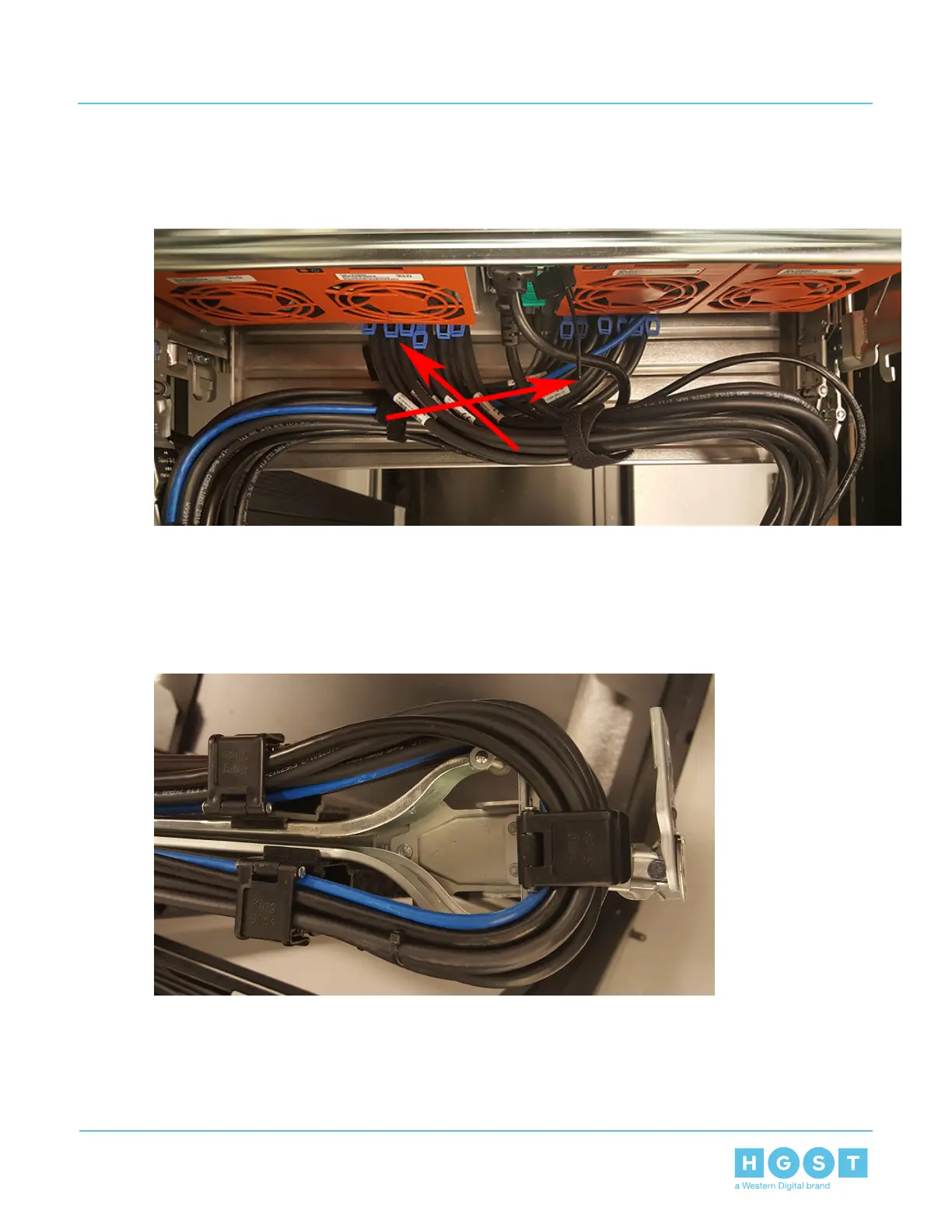

Figure 171: Crisscross Cables
When the cables are routed into the CMA, make sure there is some slack given to the elbow joint of the CMA.
It is recommended not to wrap the cables tightly around this joint because this can cause binding and prevent
smooth operation. To ensure there is enough slack at the elbow, pull the enclosure in and out of the rack and
have another installer check for binding in the elbow joint. Make sure the cables are bending and not twisting.
Figure 172: CMA Elbow with Full Cable Bundle
144
4 Part Replacement
User Guide 4.10 Special Considerations for Cable Routing
