Destination DeviceSource DeviceHardware
Enclosure3: IOMB, B2Enclosure2: IOMB, B4
Enclosure4: IOMA, A1Enclosure3: IOMA, A3
Enclosure4: IOMA, A2Enclosure3: IOMA, A4
Enclosure4: IOMB, B1Enclosure3: IOMB, B3
Enclosure4: IOMB, B3Enclosure3: IOMB, B4

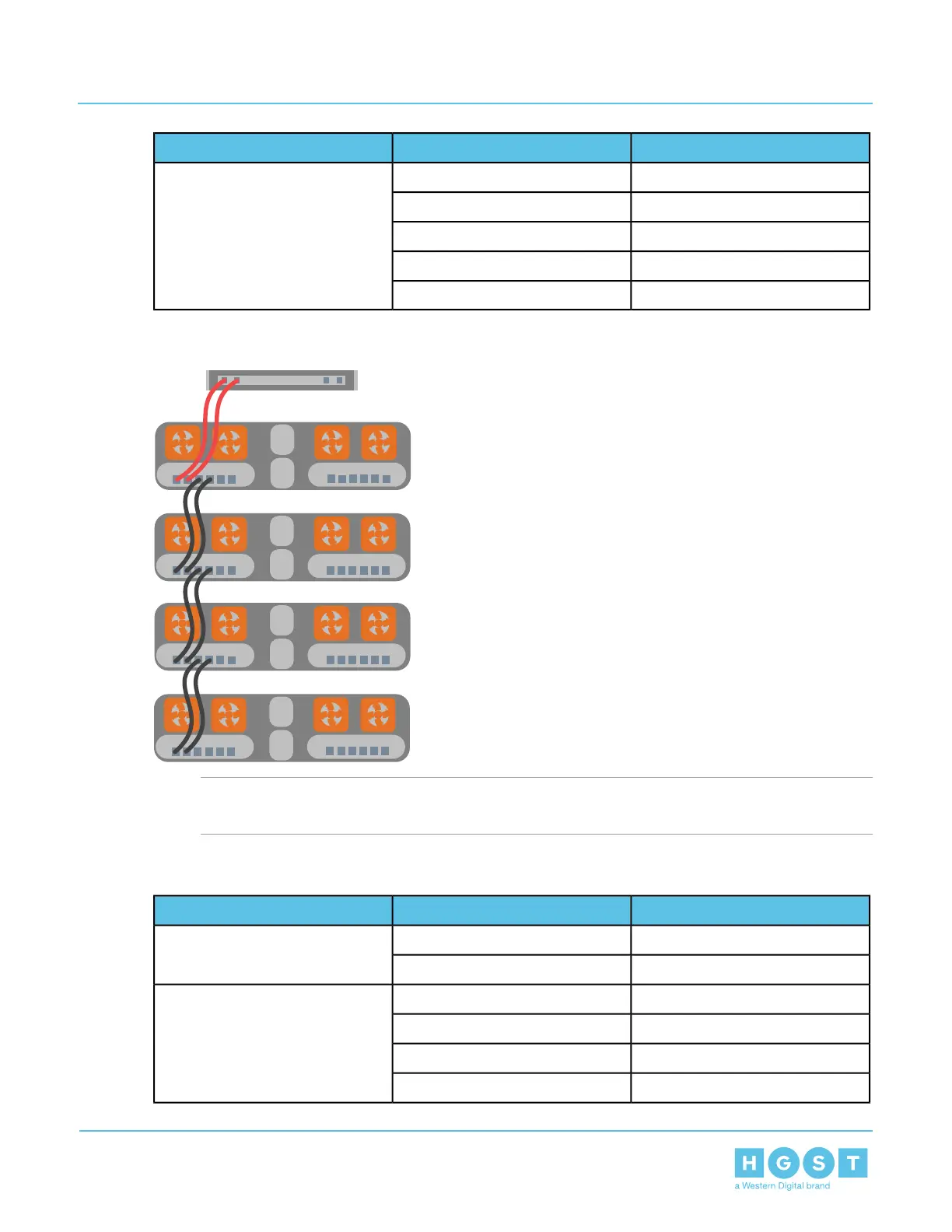

Figure 204: SATA Enclosure Configuration One Host with a Single HBA
Note: The diagram displays red SAS cables to indicate passive connections between the host and
the enclosure. The black SAS cables indicate active connections between each enclosure.
Table 52: Four SATA Enclosures: One Host with a Single HBA
Destination DeviceSource DeviceHardware
Enclosure1: IOMA, A1Host1: P1Host Connections
Enclosure1: IOMA, A2Host1: P2
Enclosure2: IOMA, A1Enclosure1: IOMA, A3Enclosure Connections
Enclosure2: IOMA, A2Enclosure1: IOMA, A4
Enclosure3: IOMA, A1Enclosure2: IOMA, A3
Enclosure3: IOMA, A2Enclosure2: IOMA, A4
194
5 System Management
User Guide 5.4 Daisy Chaining
