in a "criss-cross" pattern. See the Special Considerations for Cable Routing on page 142
for more information.

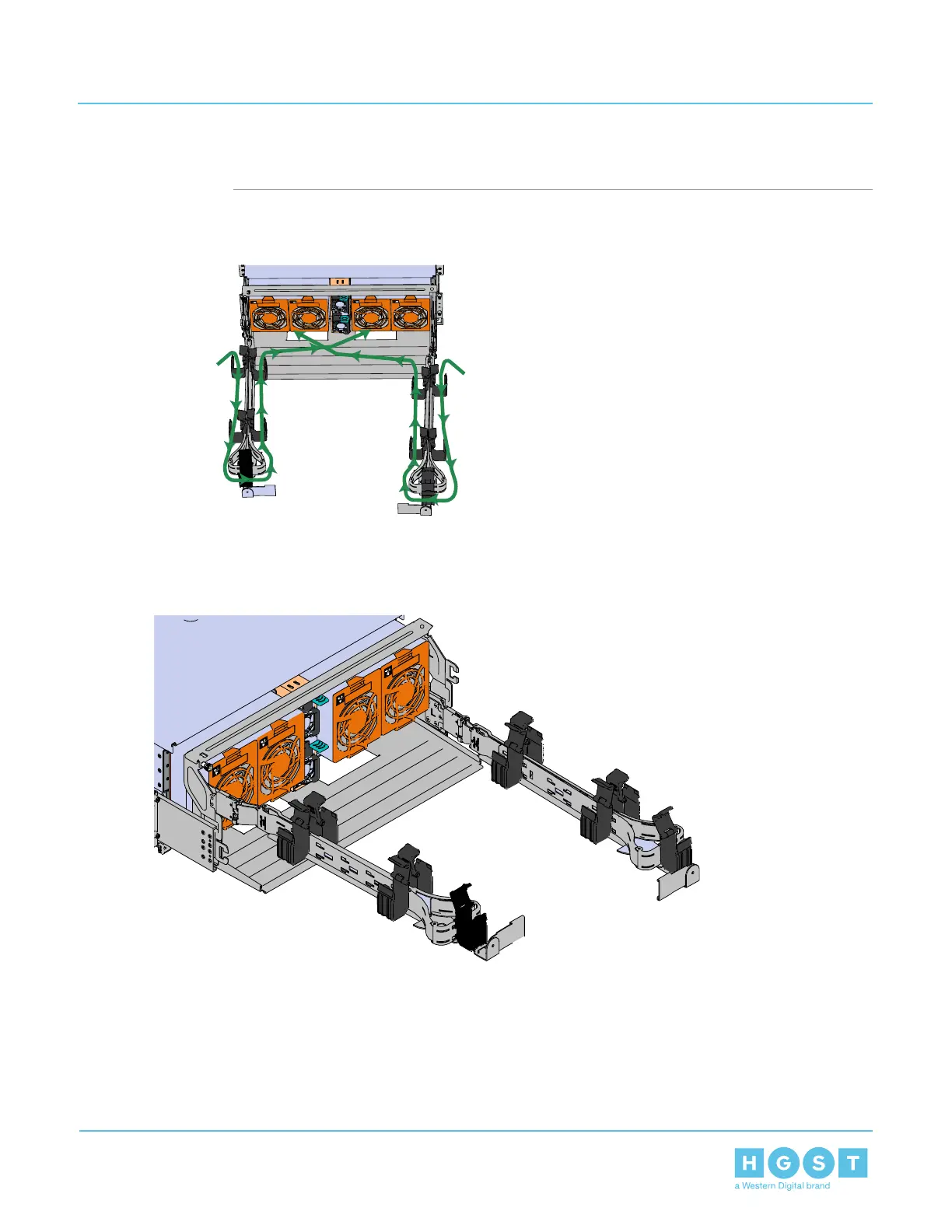

Figure 68: Connected Cable Routing
c) Open all of the baskets
Figure 69: Open Baskets
d) Connect the Ethernet cable to the Ethernet port on the right hand side of the Ultrastar Data60 and
route the cable through each of the baskets on the CMA.
e) Connect all of the SAS cables that will be used and route them through the baskets one at a time.
Make sure to follow the labels to make sure they are connected to the proper port.
f) Make sure the power cable is not connected to a PDU. Then connect the power cable to the lower
PSU and route it through each basket. If the power cable is already connected to the PDU, the system
will power up. This is not intended at this stage of installation.
77
4 Part Replacement
User Guide 4.7 CMA Replacement
