c) Open all of the baskets

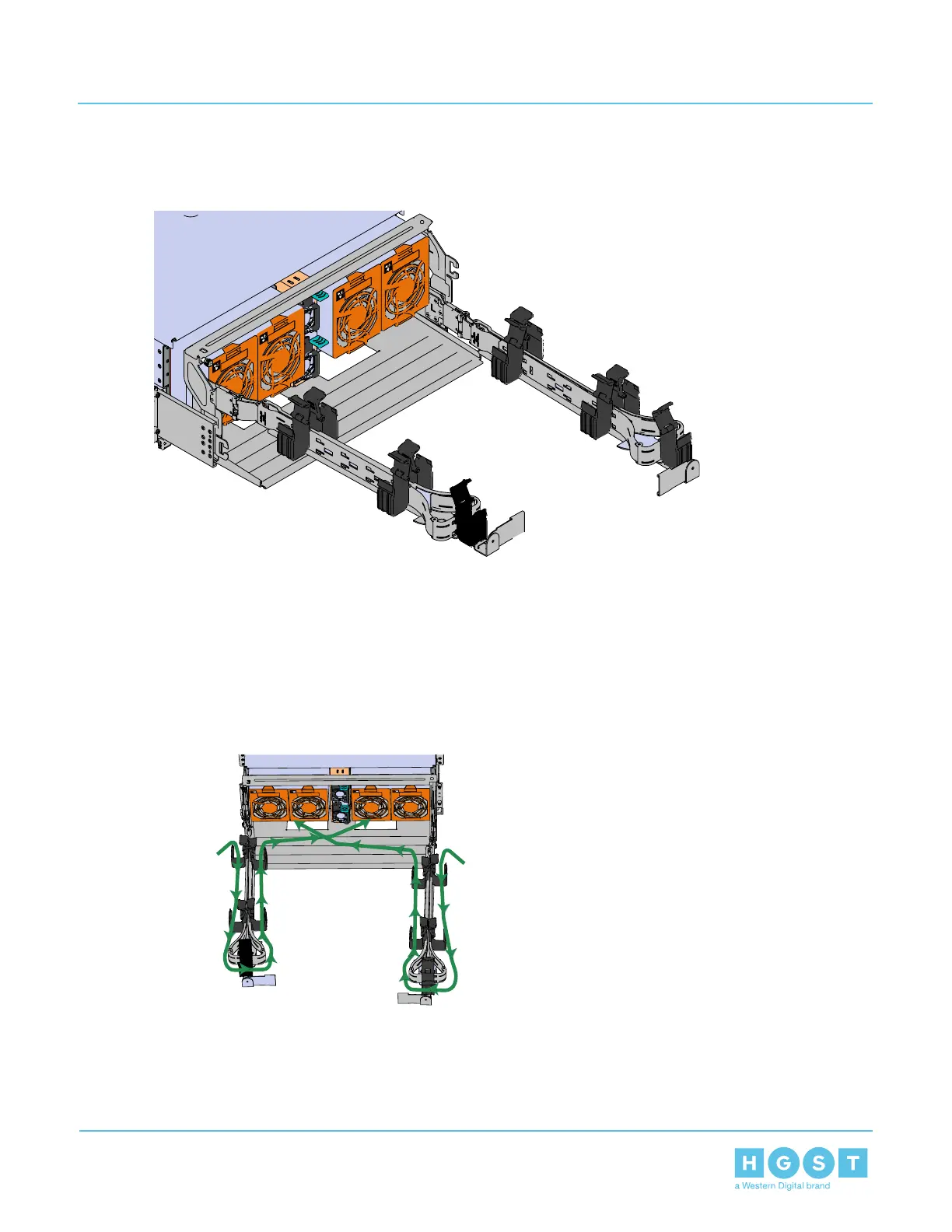

Figure 71: Open Baskets
a) Connect the Ethernet cable to the Ethernet port on the right hand side of the Ultrastar Data60 and
route the cable through each of the baskets on the CMA.
b) Connect the SAS cables and route them through the baskets one at a time. Make sure to follow the
labels to make sure they are connected to the proper port.
c) Connect the power cable to the lower PSU and route it through each basket. The following image
shows the appropriate cable "criss-cross" pattern they should be installed in.
Figure 72: Connected Cable Routing
d) Wrap cable tie around the installed cable bundle between the ports and the first basket of the CMA
79
