DTS-60A OPERATORS MANUAL
90
8.7.2 test read

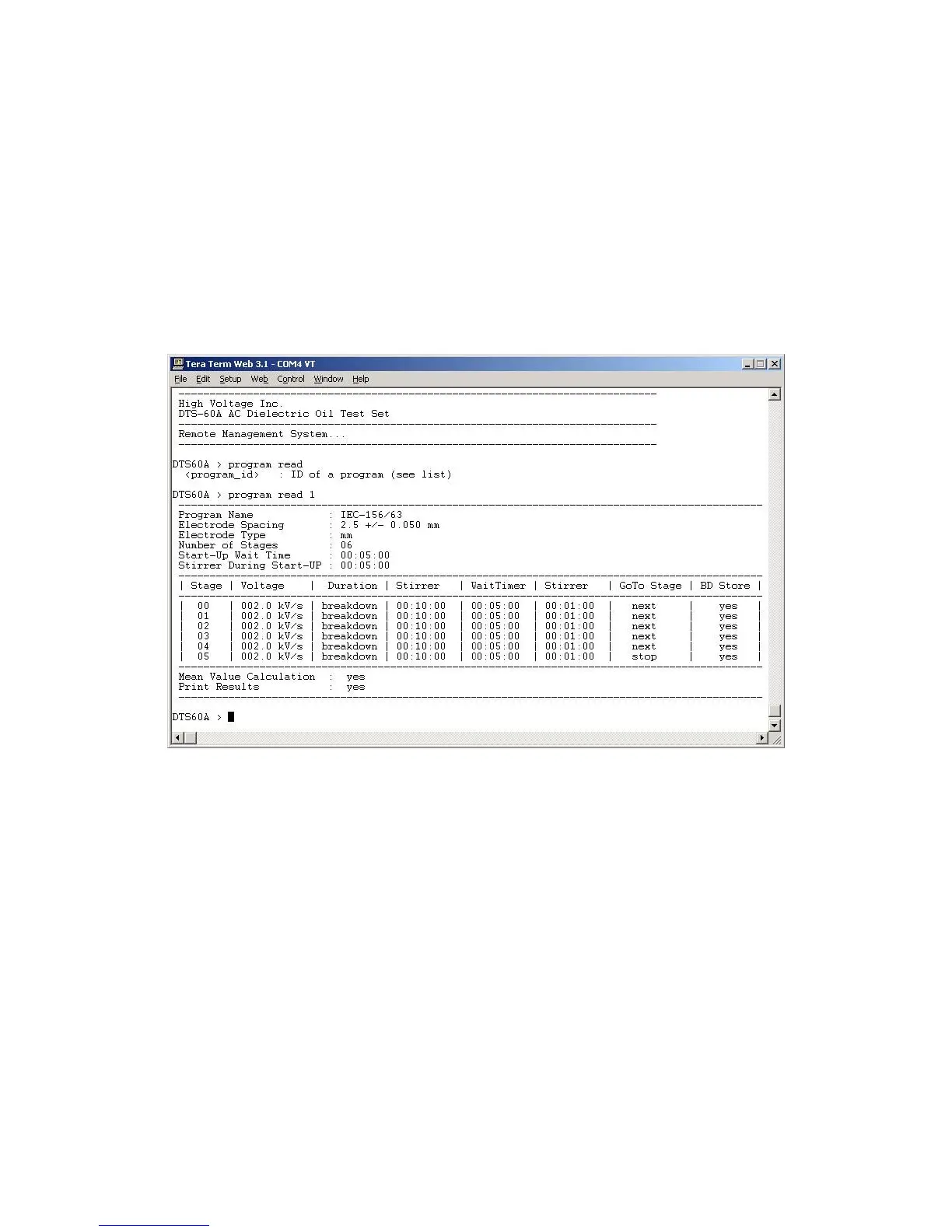

The test read <id> command displays information related to the
selected test id, Figure 8-9. The first block of information table includes the
Test Name, the Electrode Type and Spacing, the Number of Stages, as well
as the Start-up Wait Timer and the Start-up Stirrer Timer (see section 4.1).
The second information block includes information related to the selected
test's stages, such as the Stage ID, the Voltage Value, the Voltage Type, the
Duration, the Stirrer Timer, the After Breakdown Wait Timer and Stirrer
Timer, the After Breakdown Stage and finally the Breakdown Voltage
Storage. The third information block includes information for Printout
Enable/ Disable and Statistics Enable/ Disable.
Figure 8-11 – test read Command
