DTS-60A OPERATORS MANUAL
32
3.4 Simple Test Execution
If the ‘ENTER’ key is selected, the system executes the Simple
Test. If the user presses any key, the execution will be immediately
interrupted and the Simple Test will be cancelled. Otherwise, the Simple
Test will continue the voltage increasing until the detection of a
breakdown, Figure 3-6. Then the system will be halted.
The user should press any key in order to continue. The system
will ask the user if a new test for the same insulator oil sample is
desired, Figure 3-6. If the user presses the ‘ENTER’ key a new test
process will be initiated, Figure 3-2.

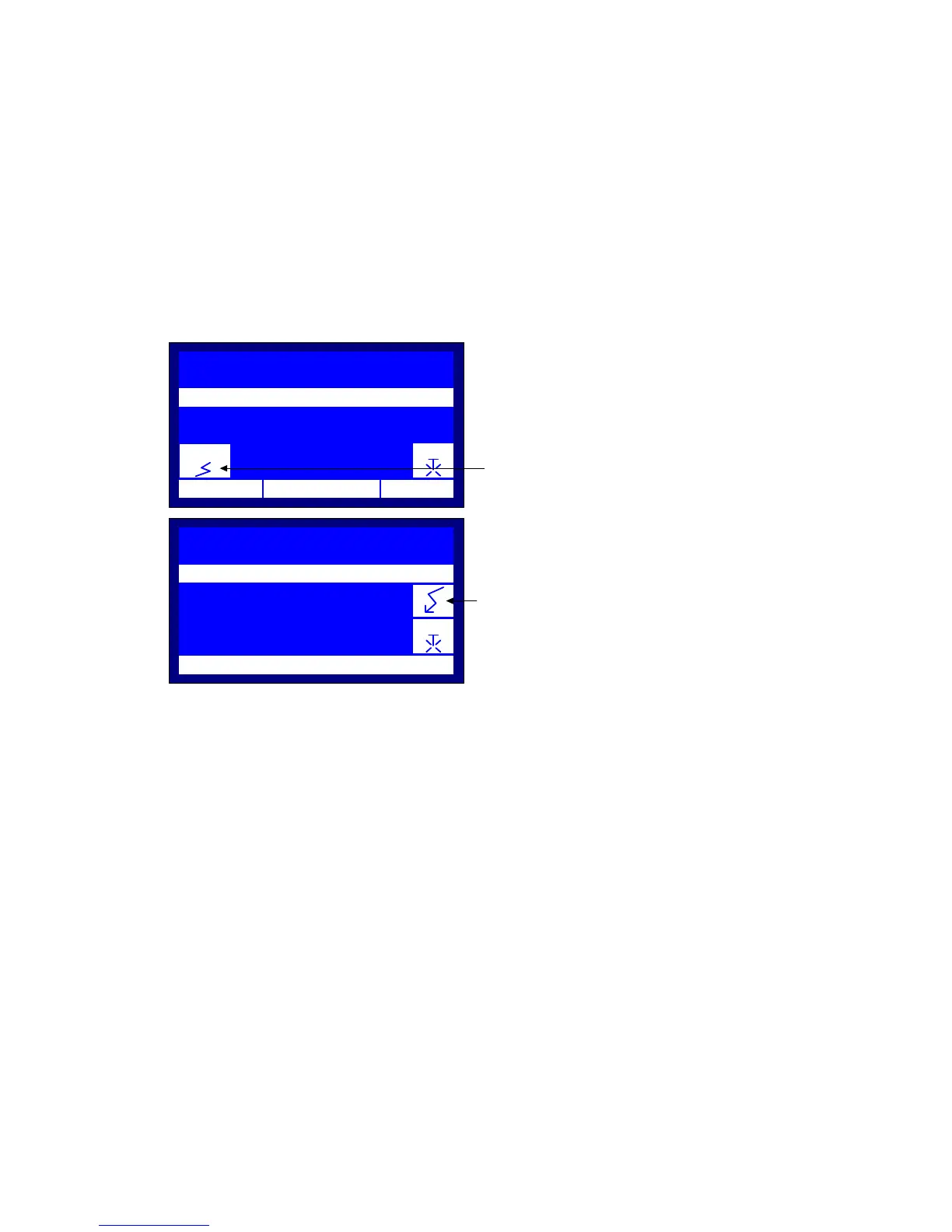

Figure 3-6 – Proceed to a new test
1.0
kV
STIR
STAGE
1
HN on
12:10 01/08/05 65 °F
48.2
PRESS ANY KEY...
kV
STIR
STAGE
1
High Voltage ON indicator
Breakdown Indicator
TEST:SIMPLE TEST
TIMER:
00:00:02
VOLTAGE:
0.5 kV/s
TEST:SIMPLE TEST
TIMER:
00:01:36
VOLTAGE:
0.5 kV/s
