DTS-60A OPERATORS MANUAL
9
2. Verify Electrode/Gap Spacing, Figure 1.6a/b.
This warning message is displayed at the startup of every
test procedure, in order to remind the user to check the
electrodes type and spacing, according to the selected test.
If the selected test is a standard one (where the spacing
and the type of the electrodes is specific) the message will
inform the user for the appropriate settings (type, spacing),
Figure 1.6a. The user may release the system by pressing
the ‘ENTER’ key.
Warning Message
PROGRAM : ASTM-D1816
12:10 01/08/05 65 °F
Electrodes:
Space: 0.04±0.0010in
DURATION: 00:00:00
SYSTEM HALTED...

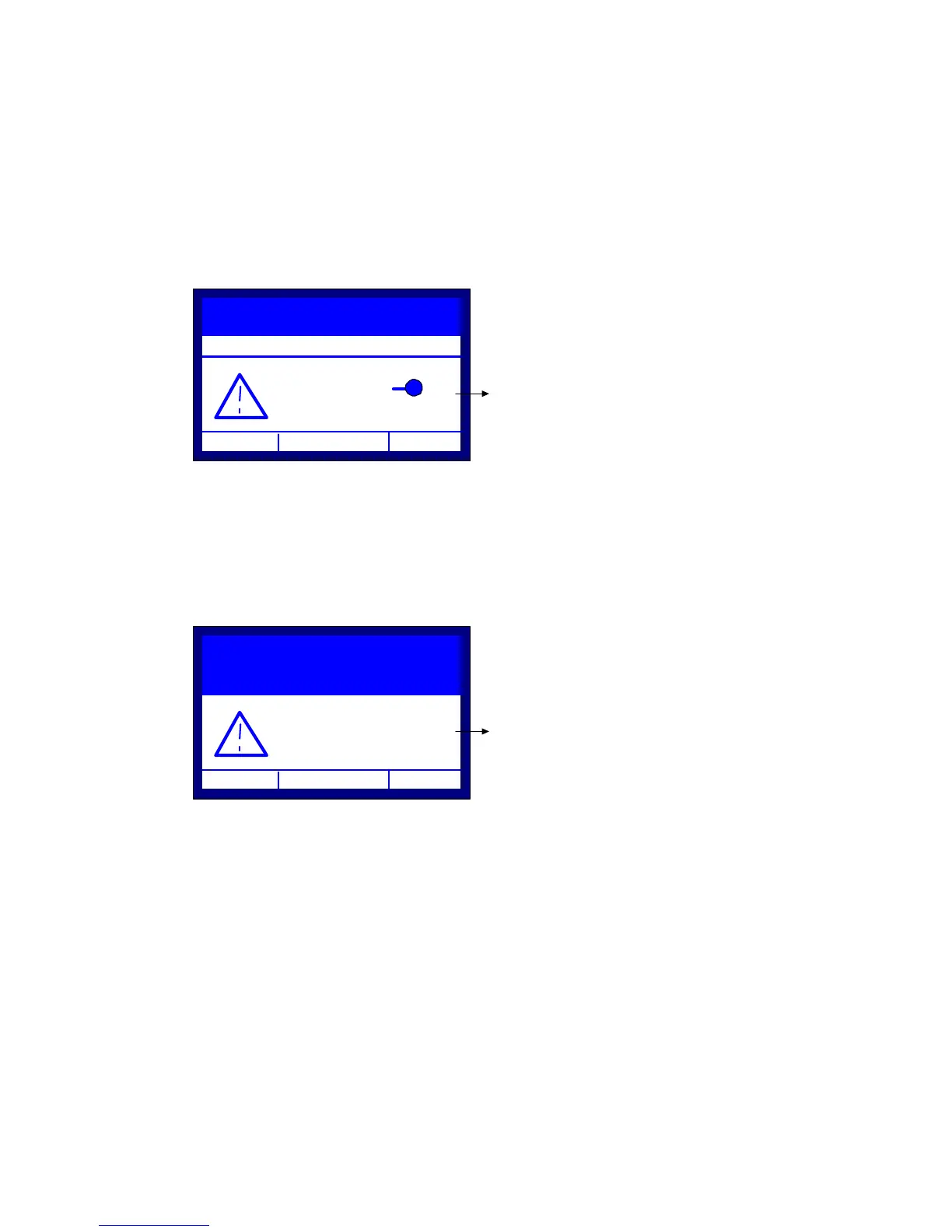

Figure 1.6a – ’Electrodes/ Space’ Warning Message
If the selected test is the Simple Test (where the
spacing and the type of the electrodes is not specific) the
message will prompt the user for verification of the desired
electrode type and spacing, Figure 1.6b. The user may
proceed by pressing the ‘ENTER’ key.
Warning Message
PROGRAM: SIMPLE TEST
12:10 01/08/05 65 °F
Verify Electrodes &
Gap Spacing
VOLTAGE: 0.5 kV/s
DURATION: 00:00:00
Figure 1.6b – Verify Electrode/Gap Spacing’ Warning Message
