HIKVISION DS-7104HGHI-F1 User Manual

Digital Video Recorder User Manual
125

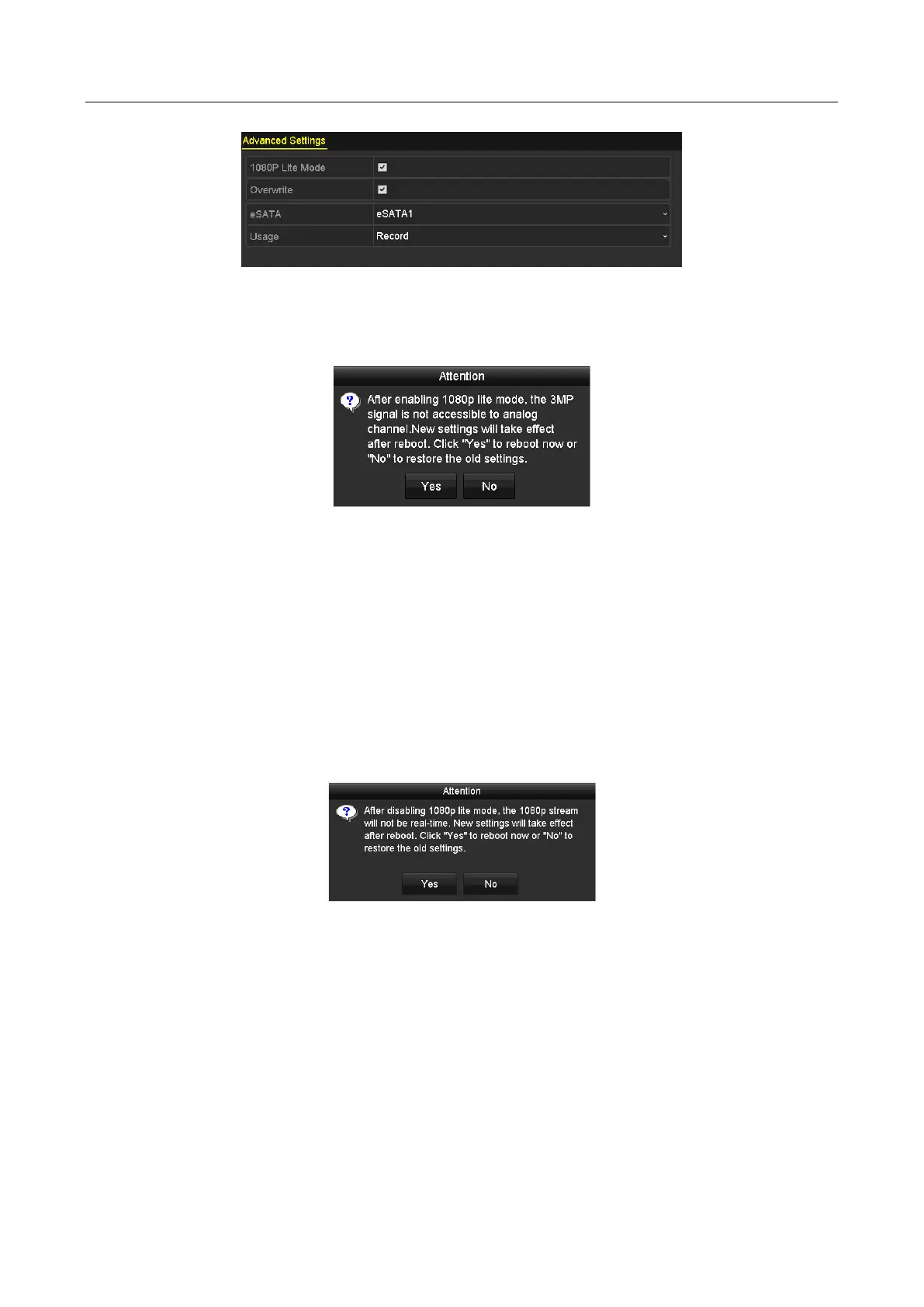

Figure 5-44 Advanced Interface (for DS-7300/8100HQHI-F/N)
Step 3 Check the checkbox of 1080P Lite Mode and click Apply to pop up the attention box. After
enabling 1080p lite mode, the 3 MP signal is not accessible to analog channel.
Figure 5-45 Attention
Step 4 Click Yes to reboot the device to have new settings taken effect.
Task2: Disabling the 1080P Lite Mode
Step 1 Enter the Record menu
Menu > Record
Step 2 Click Advanced to enter the advanced interface.
Step 3 Uncheck the checkbox of 1080P Lite Mode and click Apply. The following attention box
pops up:
Figure 5-46 Attention
Step 4 Click Yes to reboot the device to activate the new settings or No to restore the old settings.
 For HGHI-F series DVR:
Task1: Enabling the 1080P Lite Mode
Step 1 Enter the Record menu
Menu > Record
Step 2 Click Advanced to enter the advanced interface.

HIKVISION DS-7104HGHI-F1 Specifications

General

Video Compression	H.264
Video Input	4 channels
Audio Input	1 channel
Audio Output	1 channel
HDD Interface	1 SATA interface
HDD Capacity	Up to 6TB
USB Interface	2 × USB 2.0
Power Supply	12 VDC
Operating Temperature	-10 °C to +55 °C
Operating Humidity	10% to 90%
Video Output	1 VGA, 1 HDMI
Network Interface	1 RJ45 10M/100M Ethernet interface
