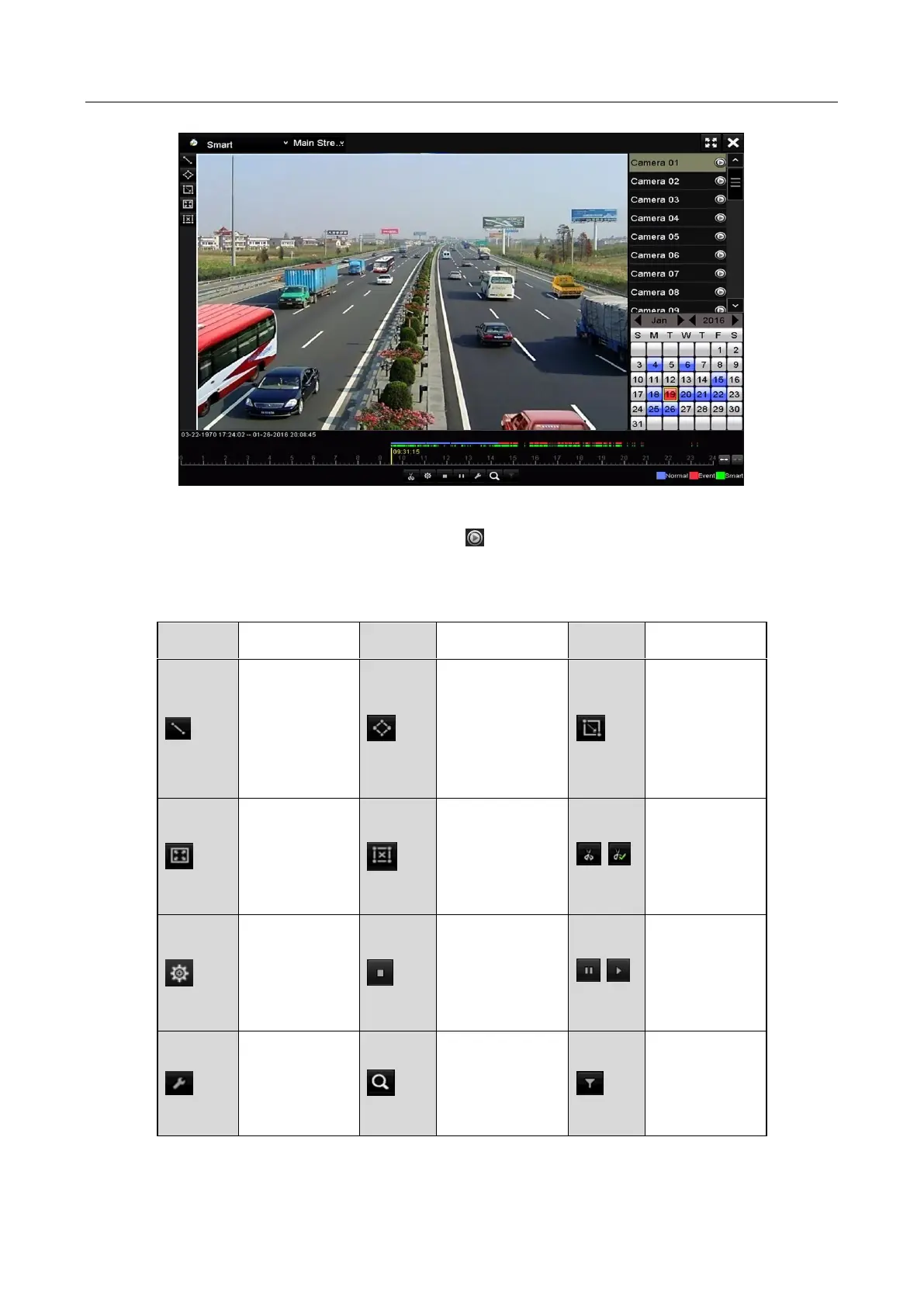

Figure 6-14 Smart Playback Interface
Step 4 Select a date in the calendar and click the button to play.
Refer to Table 6-2 for the descriptions of the buttons on the Smart Playback Toolbar.
Table 6-2 Detailed Explanation of Smart Playback Toolbar
Button
Operation
Button
Operation
Button
Operation
Draw line for
the line
crossing
detection
Draw
quadrilateral
for the
intrusion
detection
Draw
rectangle for
the intrusion
detection
Set full
screen for
motion
detection
Clear all
/
Start/Stop
clipping
File
management
for video
clips
Stop playing
/
Pause playing
/Play
Smart
settings
Search
matched video
files
Filter video
files by
setting the
target

HIKVISION DS-7104HGHI-F1 Specifications

General

Video Compression	H.264
Video Input	4 channels
Audio Input	1 channel
Audio Output	1 channel
HDD Interface	1 SATA interface
HDD Capacity	Up to 6TB
USB Interface	2 × USB 2.0
Power Supply	12 VDC
Operating Temperature	-10 °C to +55 °C
Operating Humidity	10% to 90%
Video Output	1 VGA, 1 HDMI
Network Interface	1 RJ45 10M/100M Ethernet interface
