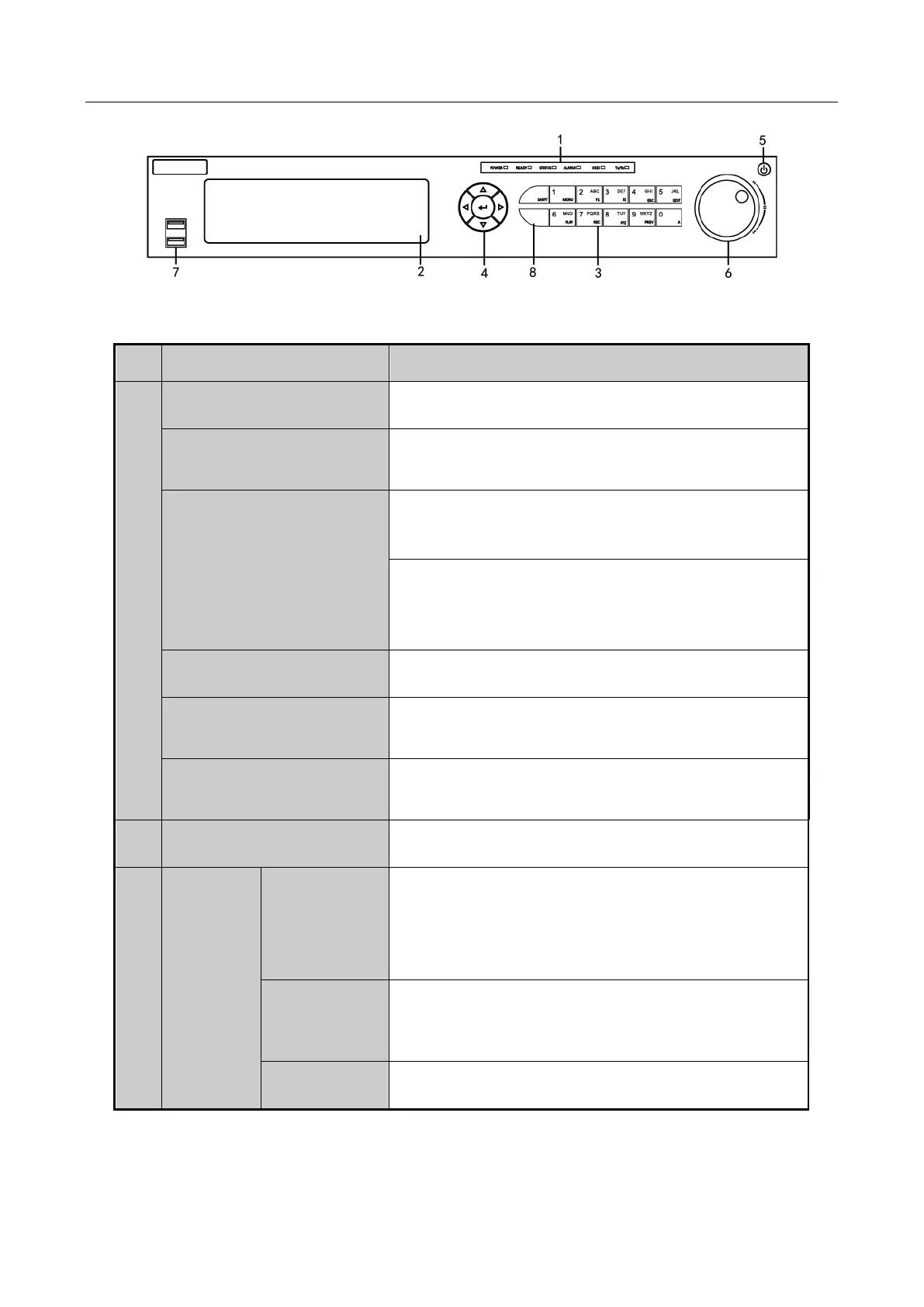

Figure 1-5 Front Panel of DS-7300HQHI-F/N and DS-7300HUHI-F/N
Table 1-4 Description of Front Panel
No.
Name
Function Description
1
POWER
Turns green when DVR is powered up.
READY
Turns green, indicating that the DVR is functioning
properly.
STATUS
Turns green when device is controlled by an IR
remote.
Turns red when controlled by a keyboard and purple
when IR remote and keyboard is used at the same
time.
ALARM
Turns red when a sensor alarm is detected.
HDD
Flickers in red when data is being read from or
written to HDD.
Tx/Rx
Flickers in green when network connection is
functioning properly.
2
DVD-R/W
Slot for DVD-R/W.
3
Composite
Keys
SHIFT
Switches between the numeric or letter input and
functions of the composite keys. (Input letter or
numbers when the light is out; Realize functions
when the light is red.)
1/MENU
Enters numeral “1”;
Accesses the main menu interface.
2/ABC/F1
Enters numeral “2”;
