Digital Video Recorder User Manual
71
Step 3 Select the IP camera from the list and click the button to add the camera (with the
same admin password of the DVRs). Or you can click the One-touch Adding button to add
all cameras (with the same admin password) from the list.
Make sure the camera to add has already been actiavted by setting the admin password, and the
admin password of the camera is the same with the DVRs.
Step 4 (Optional) For DS-7300/8100/9000HUHI-F/N series DVR, check the checkbox of Enable
H.265 (For Initial Access) for the connected IP camera supporting H.265. Then the IP camera
will be encoded with H.265.
Step 5 (For the encoders with multiple channels only) check the checkbox of Channel Port in the
pop-up window, as shown in the following figure, and click OK to add multiple channels.

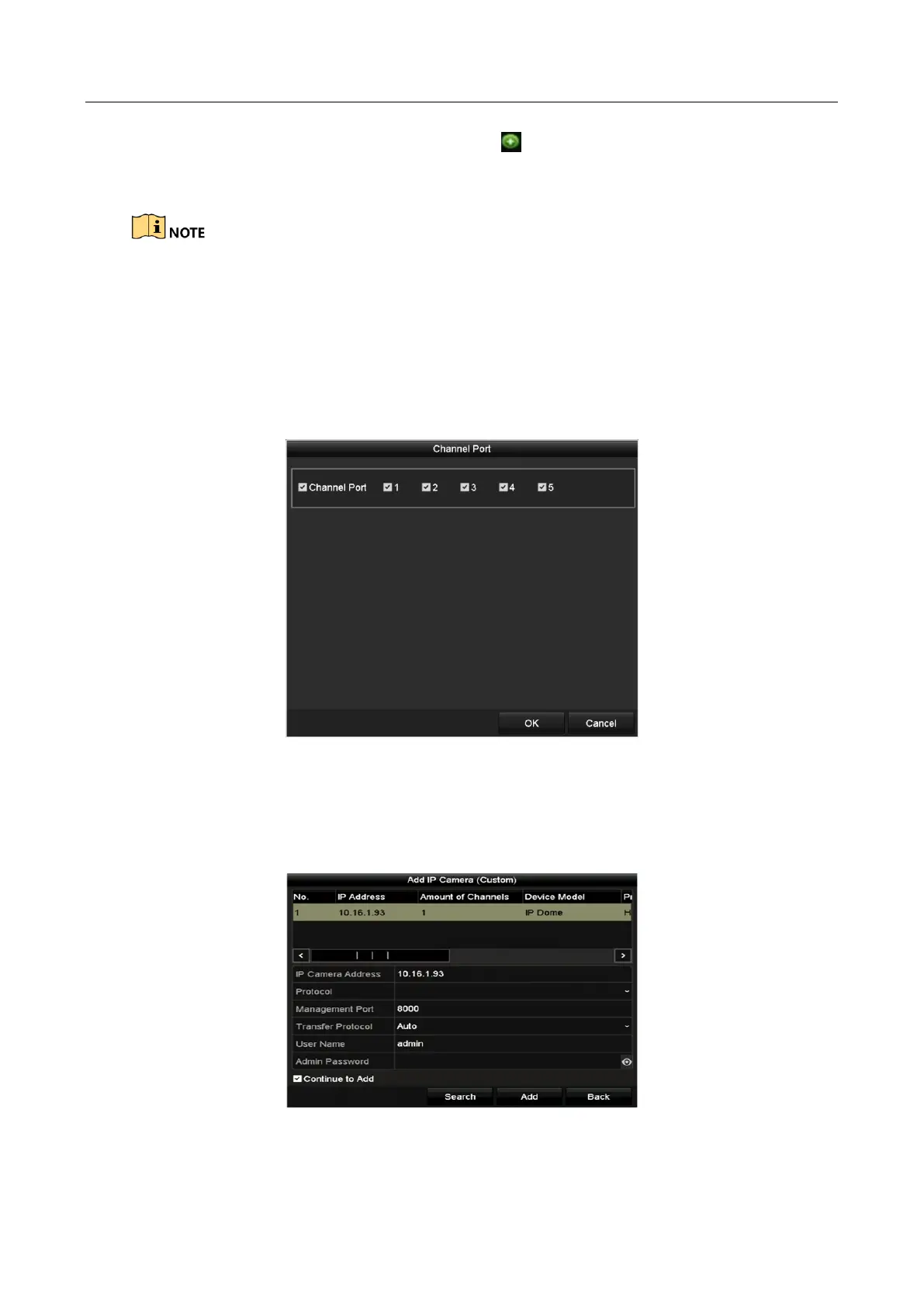

Figure 2-40 Select Multiple Channels
OPTION 2:
Step 1 On the IP Camera Management interface, click the Custom Adding button to pop up the
Add IP Camera (Custom) interface.
Figure 2-41 Custom Adding IP Camera Interface

Table of Contents

Other manuals for HIKVISION DS-7104HGHI-F1

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7104HGHI-F1 and is the answer not in the manual?

HIKVISION DS-7104HGHI-F1 Specifications

General IconGeneral
Video CompressionH.264
Video Input4 channels
Audio Input1 channel
Audio Output1 channel
HDD Interface1 SATA interface
HDD CapacityUp to 6TB
USB Interface2 × USB 2.0
Power Supply12 VDC
Operating Temperature-10 °C to +55 °C
Operating Humidity10% to 90%
Video Output1 VGA, 1 HDMI
Network Interface1 RJ45 10M/100M Ethernet interface
