Digital Video Recorder User Manual
87

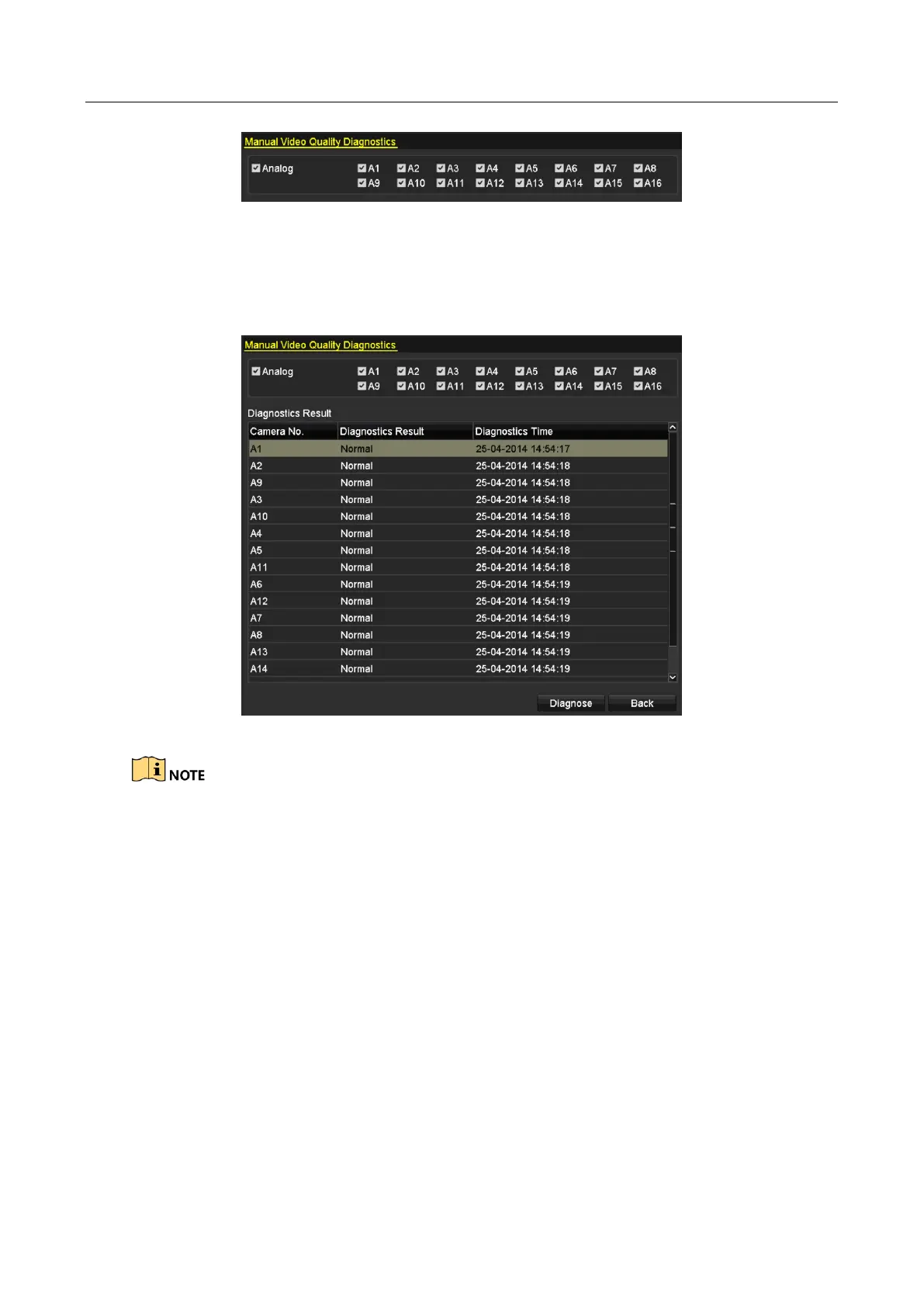

Figure 3-12 Video Quality Diagnostics
Step 2 Check the checkboxes to select the channels for diagnostics.
Step 3 Click the button Diagnose, and the results will be displayed on a list. You can view the video
status and diagnostics time of the selected channels.
Figure 3-13 Diagnostics Result
Connect the camera to the device for the video quality diagnostics.
Three exception types can be diagnosed: Blurred Image, Abnormal Brightness and Color
Cast.

Table of Contents

Other manuals for HIKVISION DS-7104HGHI-F1

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7104HGHI-F1 and is the answer not in the manual?

HIKVISION DS-7104HGHI-F1 Specifications

General IconGeneral
Video CompressionH.264
Video Input4 channels
Audio Input1 channel
Audio Output1 channel
HDD Interface1 SATA interface
HDD CapacityUp to 6TB
USB Interface2 × USB 2.0
Power Supply12 VDC
Operating Temperature-10 °C to +55 °C
Operating Humidity10% to 90%
Video Output1 VGA, 1 HDMI
Network Interface1 RJ45 10M/100M Ethernet interface
