137
_____________________________________________________________________________________________
5.6 Testing Using EXT I/O
______________________________________________________________________________________________
5.6.1 Normal Testing
EOM
T5
T4
TRIG
T1
INDEX
T2
T3
HI IN LO AND
Decision
result
Previous decision result
Note 1
LD1
LD2
LD3
LD4
LD5
Current test conditions
Panel number 9
(Panel load signals)
Following test conditions
Panel number 22
T6
(Comparator
result output)
(Measurement
finished signal)
(Analog measurement
in progress signal)
(Testing start signal)
T7
NOTE
5.6 Testing Using EXT I/O
With the test conditions for testing by the comparator having been set (with
the trigger setting set to external trigger), when in this state a trigger signal
is input via the EXT I/O connector, or when on the screen the soft
key is pressed, then the decision result is output on the comparator result
output signal line of the EXT I/O connector.
When a panel number has been selected using the panel load signal at the
input of a trigger signal via the EXT I/O connector, the 3532-50 loads the
measurement conditions for the panel number and then begins measurement.

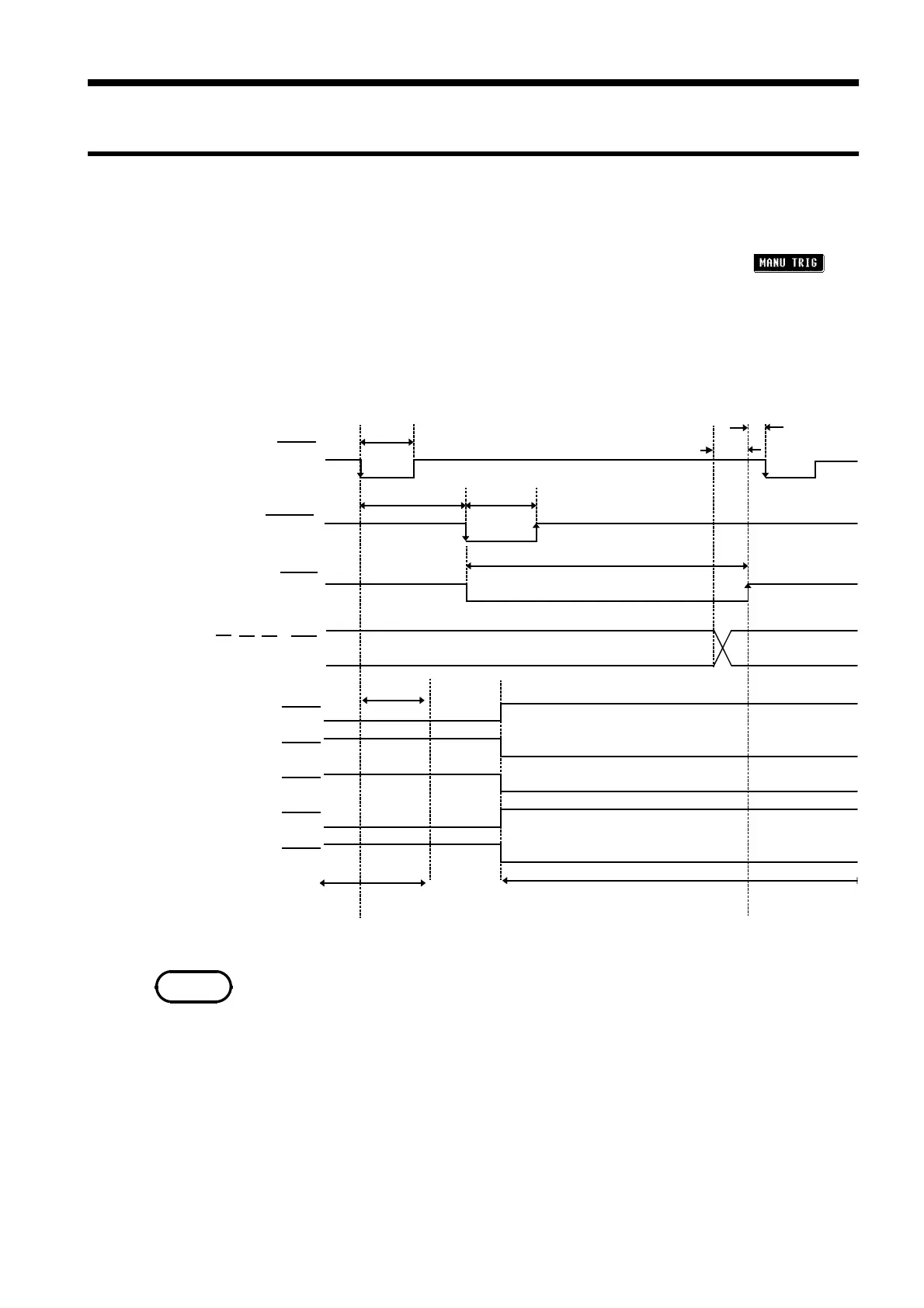

An example of testing timing is as follows:
You can use a communication command (:IO:RESult:RESet) to select whether
the judgment results for comparator measurement are reset when the start-of-
measurement signal is input or updated when measurement ends.
Note1: Reset at the same time as TRIG
―――――
:HIGH
Not reset at the same time as TRIG
―――――
: Last judgment result remains
(Initial setting)
To Next Page
