3.2 About the Screen
______________________________________________________________________________________________
3.2.1 Control Screen Sequence
Initial Screen
Menu Screen
Setting Screen
Initial Screen

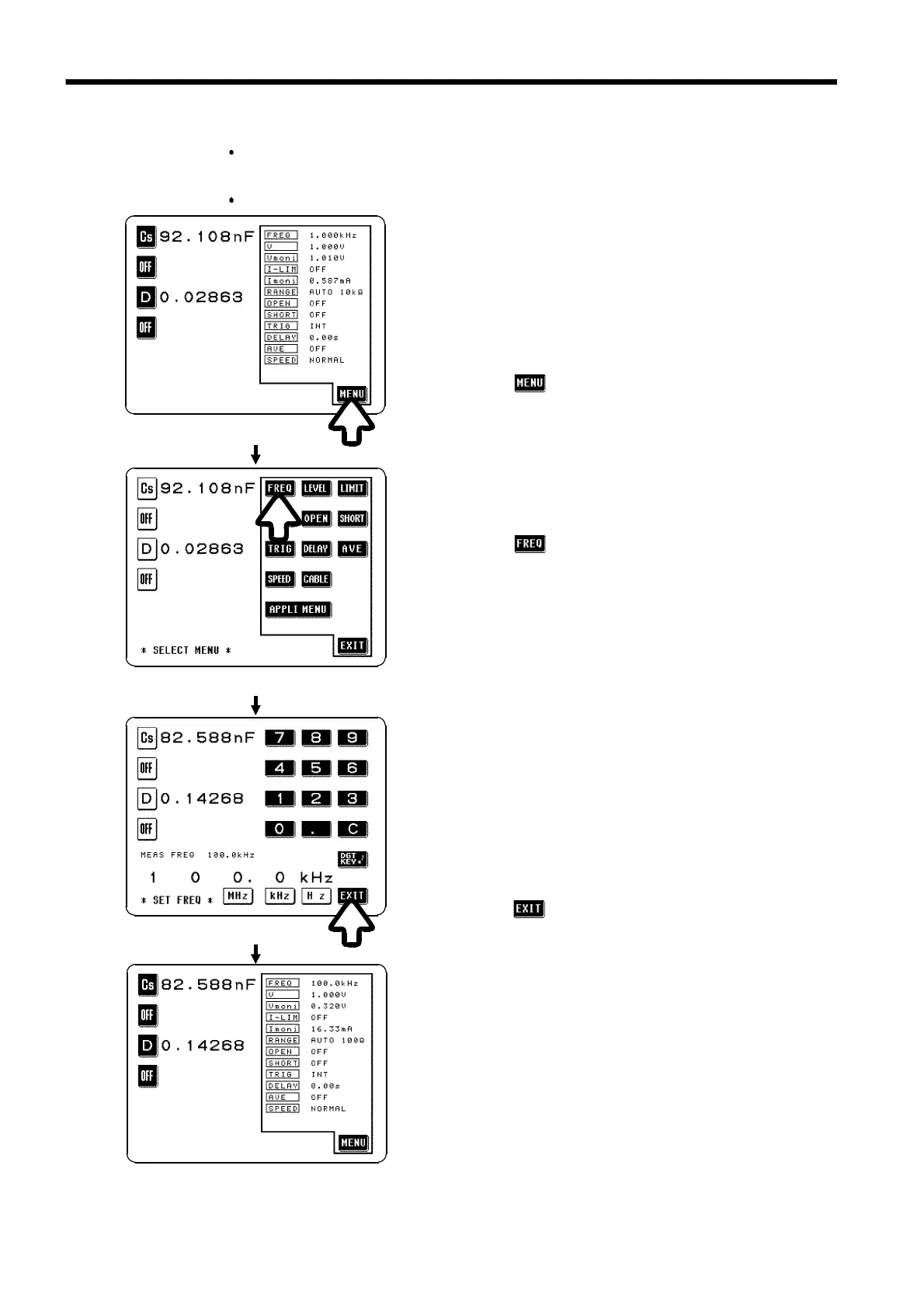

The basic flow for the change of screens as control operation is performed is
as follows.
The measurement values can be checked in real time on all of the screens.
The measured values of any of the test parameters
can be displayed for checking (up to a maximum
of four) and all of the test conditions can be
checked on the Initial screen.
To make a change to the test conditions:
Press the soft key, and the Menu screen will
be displayed.
Select the test condition to alter on the Menu
screen (for example, when changing the test
frequency).
Press the soft key, and the Frequency setting
screen will be displayed.
Set or change that test condition on the appropriate
Test condition setting screen.
When the test condition setting is complete,
press the soft key, and the display will return
to displaying the Initial screen.
