4.15 Setting and Activating the Comparator
______________________________________________________________________________________________

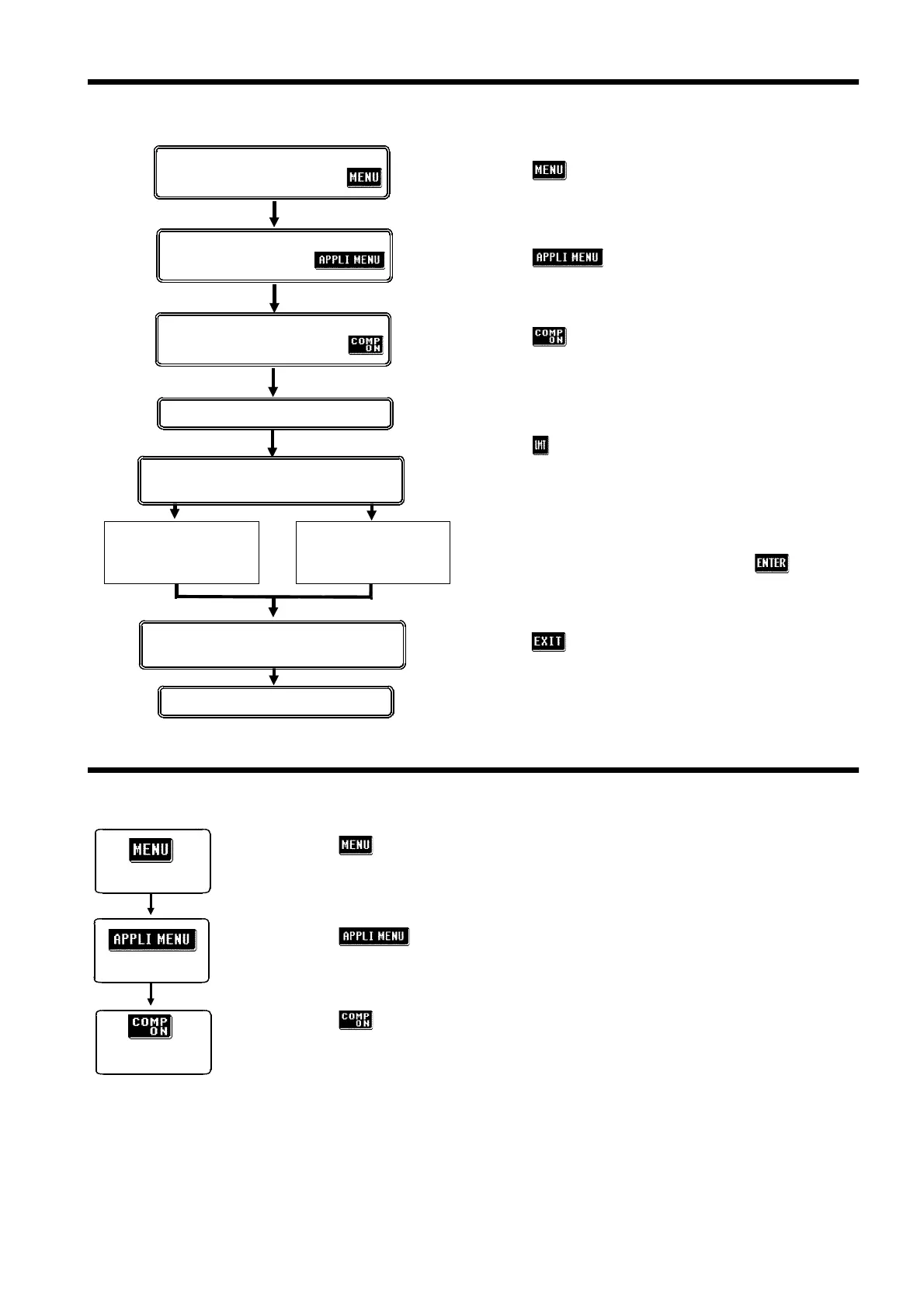

4.15.1 Control Screen Sequence
Comparator screen
Comparator screen
Initial screen
Menu screen
Application menu screen
ABS
setting mode
Input HI and LO
%, Δ%
setting mode
Input REF, HI, LO
Decision conditions setting
screen
Decision conditions setting
screen
4.15.2 Setting the Comparator
Initial screen
Application menu
screen
Menu screen
Press the key.
Press the key.
Press the key.
Activate the comparator.
To change the comparator settings,
press the key.
Choose the comparator setting method
(ABS, %, or Δ%)
Input the decision conditions.
When the input is complete, press the key to
return to the Decision conditions setting screen.
When the setting has been established as above,
press the key to return to the Comparator
screen.
1. Press the key on the Initial screen to display the Menu screen.
2. Press the key on the Menu screen to display the Application menu
screen.
3. Press the key on the Application menu screen to display the
Comparator screen. At the same time, the comparator will be started.
