3.2 About the Screen
______________________________________________________________________________________________

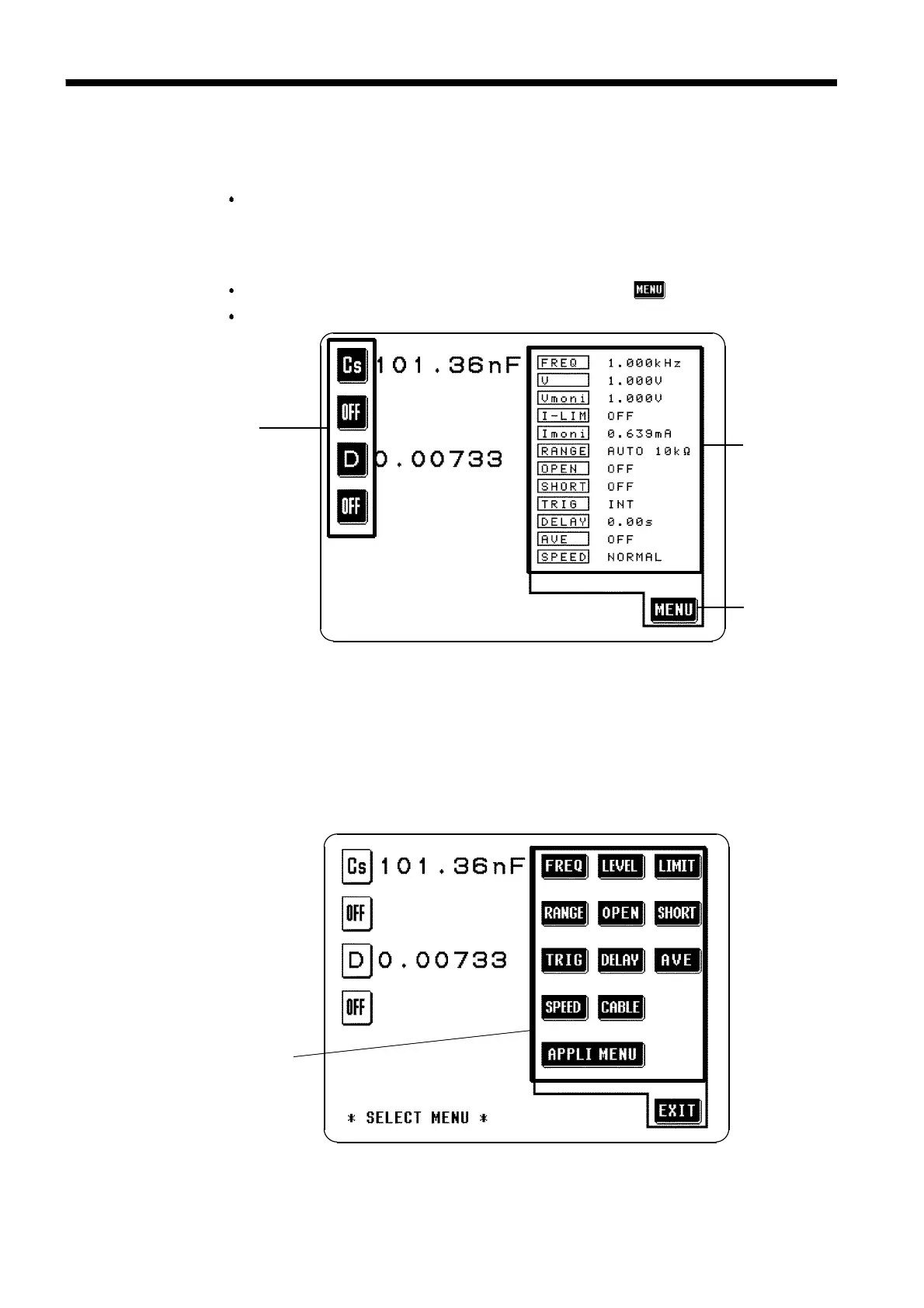

Initial Screen
Parameter
keys
Monitor
display
Menu key
Menu
Screen
To change any one of the test
conditions (frequency, controlled
level, etc.), press the corresponding
key on this menu.
3.2 About the Screen
(1) The Initial screen
When the power is first turned on, the basic screen for controlling the 3532-
50 immediately appears, called the "Initial screen". A maximum of four of
the test parameters (L, C, R, etc.) can be set for display, and all of the test
conditions can be checked, on this Initial screen.
The Menu screen can be displayed by pressing the key.
The Parameter setting screen can be displayed by pressing a parameter key.
For details, refer to Section 4.1.1, "The Initial Screen."
(2) The Menu screen
The Menu screen is used for selecting whichever of the test conditions you
want to change. Pressing one of the keys on this screen changes over the
display to the appropriate test condition setting screen.
For details, refer to Section 4.1.2, "The Menu Screen and Application Menu
Screen"
