4.4 Setting the Test Signal Level
______________________________________________________________________________________________
4.4.3 Setting the Open Circuit Voltage (V) Level

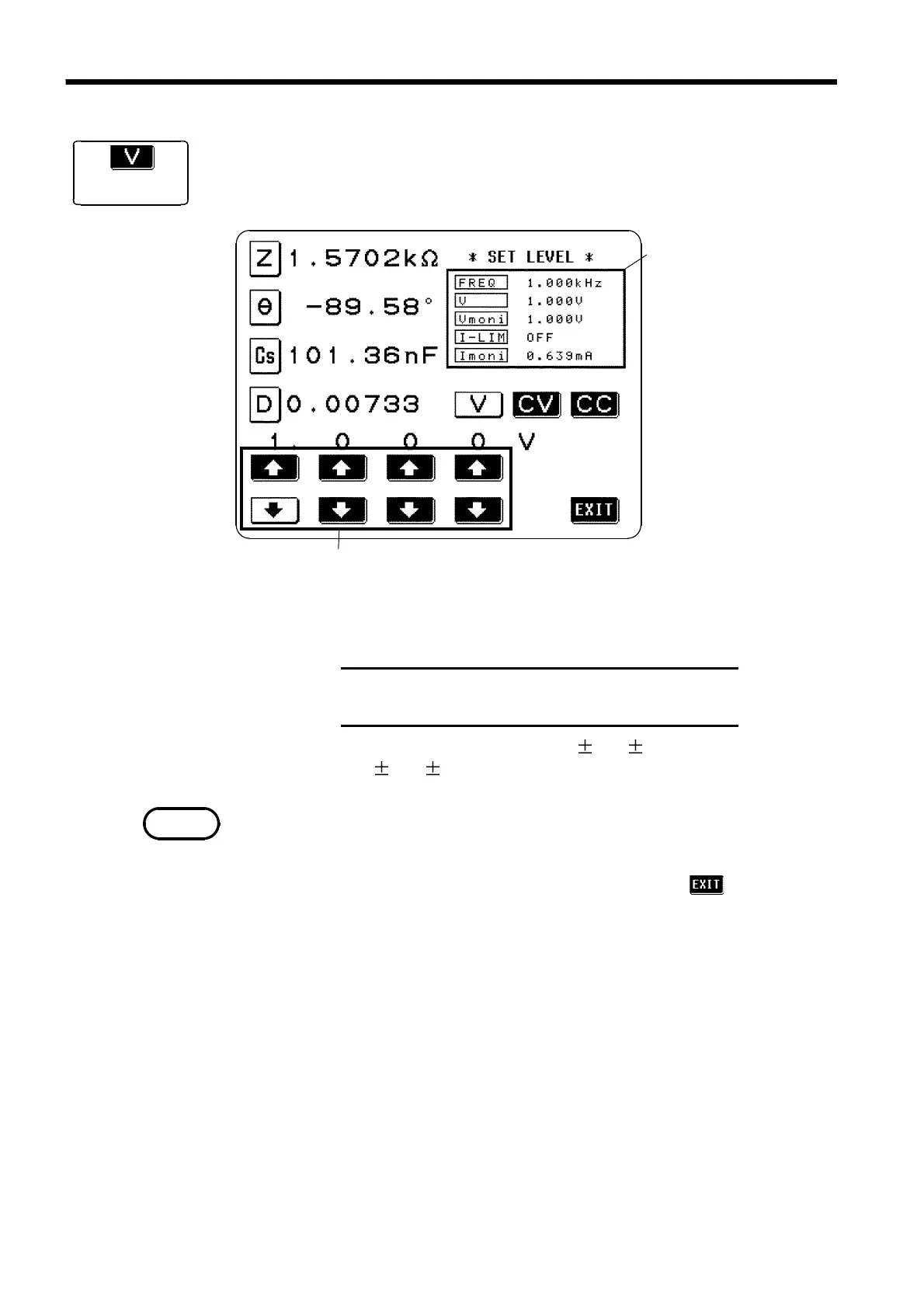

Test signal level
setting screen
The digit keys (If held down continuously, the corresponding digit increments
or decrements continuously.) (If the limit for the corresponding digit is reached,
these keys change to non-reversed video and become inactive.)
Monitor display portion

Test frequency

Open circuit voltage

Voltage between test
samples

Limit value for the
current

Current flowing
through the test
sample
Test frequency (Hz)
42.0 - 1.000 M
1.001 M - 5.000 M
Open-circuited voltage
0.010 V- 5.000 V
0.010 V - 1.000 V
NOTE
1. Press this key to set open circuit voltage (V), and the monitor display will
change immediately.
2. Change the open-circuited voltage value using the digit keys.
The definable open-circuit voltage depends on the frequency.
The accuracy of the open-circuit voltage is 10% 10 mV for 42.0 Hz to
1.000 MHz, and 20% 10 mV for 1.001 MHz to 5.000 MHz.
When the test frequency is higher than 1 MHz at an open-circuit voltage of
more than 1 V, the voltage is automatically set to 1 V.
3. When the setting has been established as above, press the key to return
to the Initial screen.
