3.3 Basic Measurement
______________________________________________________________________________________________
3.3.6 Setting Short Circuit Compensation
Before Setting
After Setting
Initial Screen
Menu Screen

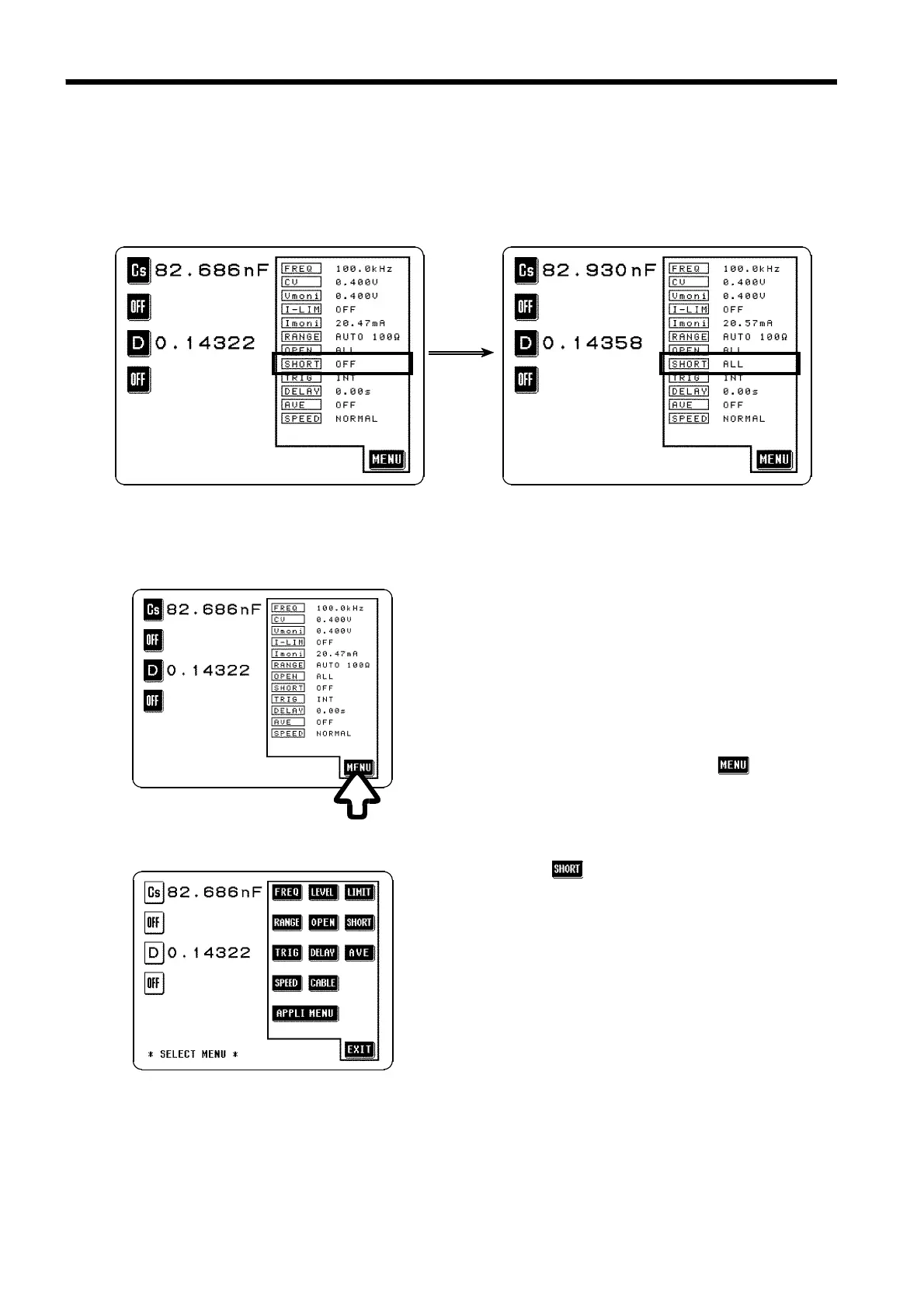

The following explanation shows, as an example, how to set up ALL short
circuit compensation, with which short circuit compensation values for all of
the test frequencies are determined and adjusted.
Setting procedure
1. Arrange the test leads as closely as possible to
their configuration in which measurement will
be performed, and short circuit together the
HIGH and LOW leads using a shorting bar.
(Refer to Section 4.8.2 for information about
the shorting bar.)
2. On the Initial screen, press the key, and
the Menu screen will be displayed.
3. Press the key on the Menu screen, and
the Short circuit compensation screen will be
displayed.
