4.14 Setting the Measurement Cable Length
______________________________________________________________________________________________
4.14.2 Details of the Setting Process

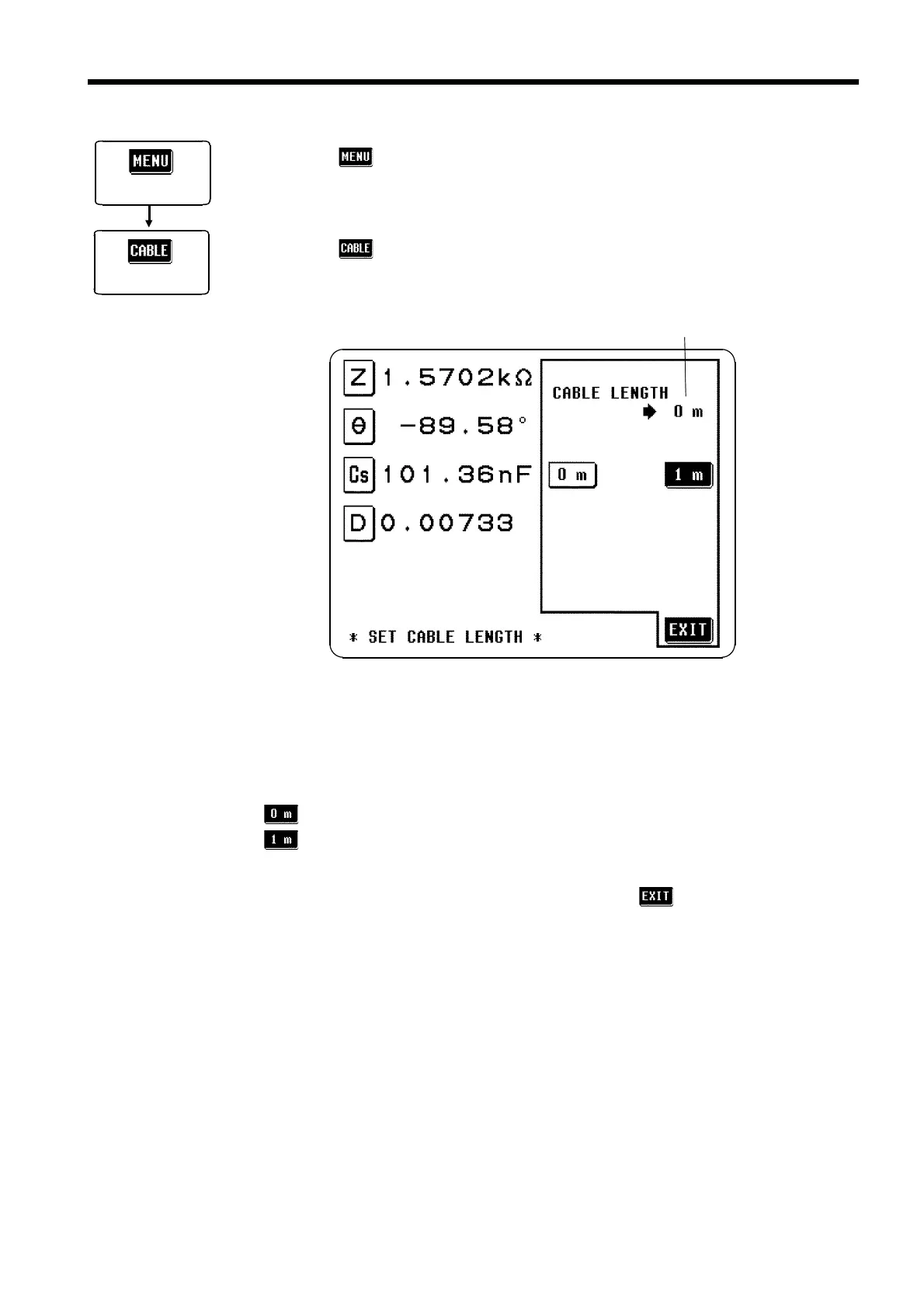

Initial screen
Menu screen
The specified cable length is displayed.
Cable Len
g
th Settin
g
Screen
1. Press the key on the Initial screen to display the Menu screen.
2. Press the key on the Menu screen to display the Cable length setting
screen.
3. Select the desired cable length.
When the following test fixture probe is used, set the cable length shown
below.
: When using the 9262 TEST FIXTURE or 9263 SMD TEST FIXTURE
: When using the 9140 4-TERMINAL PROBE, 9143 PINCHER PROBE, or 9261
TEST FIXTURE
4. When the setting has been established, press the key to return to the
Initial screen.
