4.10 Setting the Trigger
______________________________________________________________________________________________
Press this key to perform testing once.
The external trigger can be input manually, via the EXT I/O connector, or via
interface.

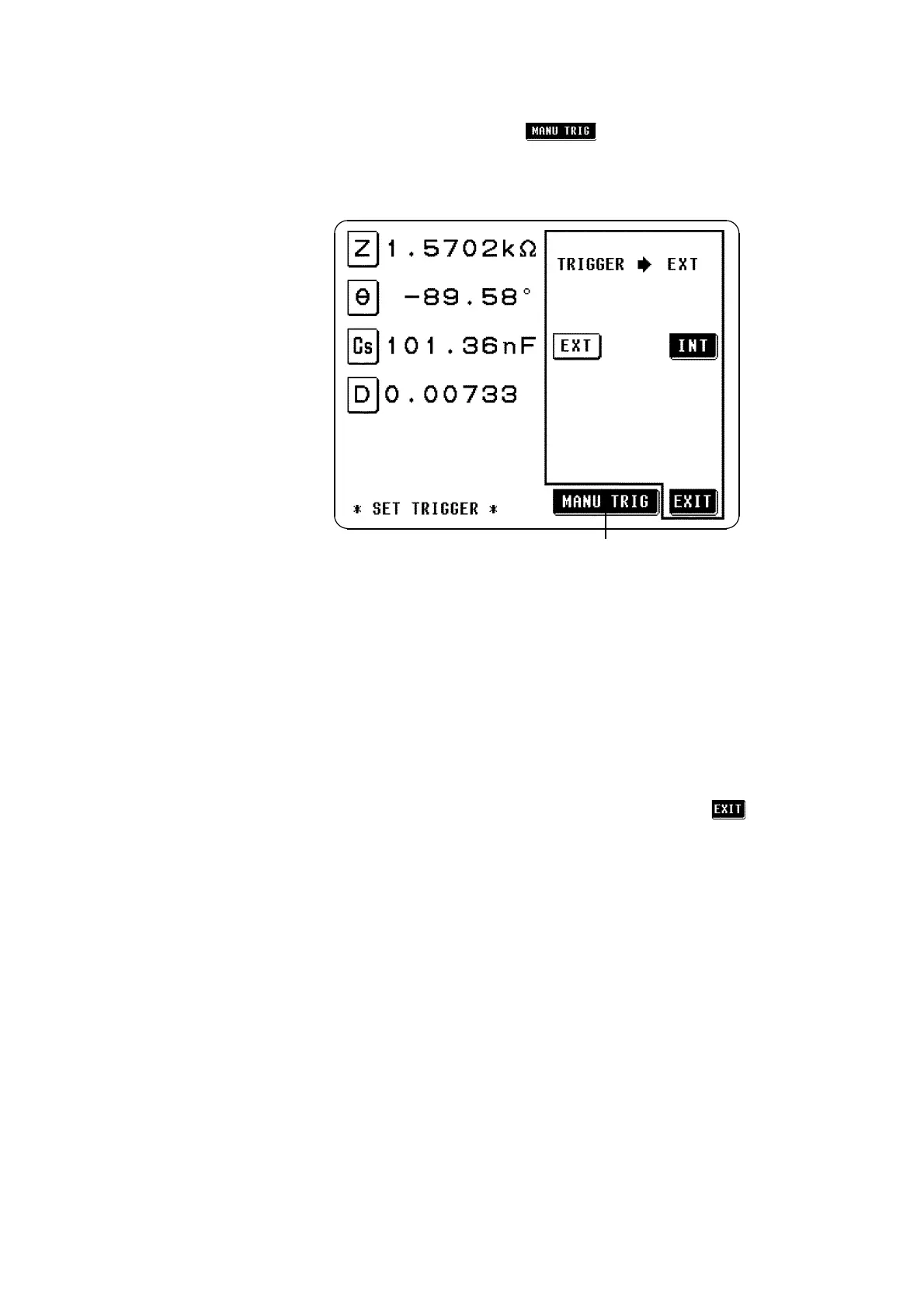

When external trigger is selected, appears as shown in the
following figure, and a manual trigger signal can be input by pressing this
key.
When inputting the trigger signal through the EXT I/O connector:
Testing is performed once, each time a negative sense pulse signal is
supplied to the EXT I/O connector on the rear panel of the 3532-50. (For
details, refer to Section 5.5, "The EXT I/O Connector")
When inputting the trigger signal through the interface:
Testing is performed once, when the "
*
TRG" command is transferred from
the interface. (For details, see the "Command Reference" of the Instruction
Manuals for the interface.
3. When the setting has been established as above, press the key to return
to the Initial screen.
