Fuse Replacement
4
Remove the battery cover.
Do not remove the gasket (waterproof seal) from the battery cover.
(p. 25)
5
Insert a athead screwdriver or other suitable tool at the
location shown in the gure and remove the fuse.
6
Attach a new fuse. (The fuse does not have polarity.)
7
Reattach the battery cover.
8
Lock the battery cover.
Turn the locks 180° in the clockwise direction using the screwdriver or
coin and align [LOCKED] with the
symbol (2 places).
If the cover is not attached properly, the waterproof and dust-proof
performance cannot be maintained.
LOCKED
UNLOCKED
LOCKED
UNLOCKED
44
77

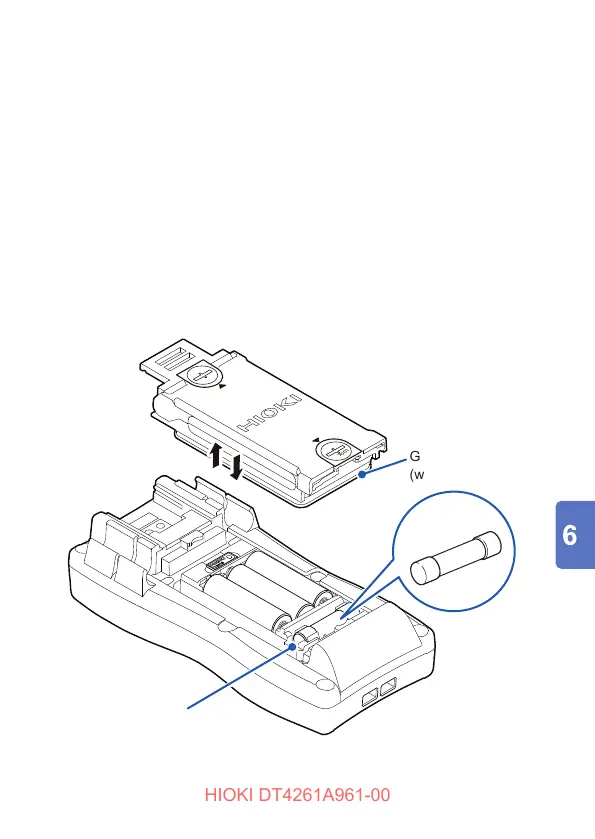

Gasket
(waterproof seal)
Location at which to insert
athead screwdriver or
other suitable tool
55
Fuse
