33
Inserting/Replacing Batteries
Battery installation/replacement procedure
Read the precautions before performing the procedure. (p. 30)
You will need
• Phillips screwdriver (No. 2), at-head screwdriver or coin
• LR6 Alkaline battery ×3
OFF
22
11
1
Remove the test leads from the
instrument.
2

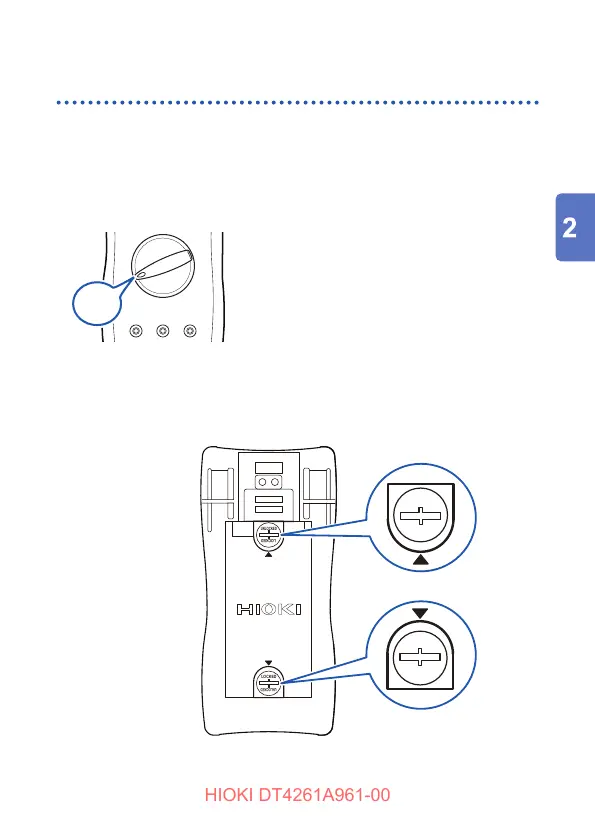

Set the rotary switch to OFF.
3
Release the locks for the battery cover.
Turn the locks 180° in the counterclockwise direction using the
screwdriver or coin to align [UNLOCKED] with the
symbol (2 places).
Rear
LOCKED
UNLOCKED
LOCKED
UNLOCKED
LOCKED
UNLOCKED
LOCKED
UNLOCKED
Lock
Continued to the next page →
