Hioki DT4261 - Magnetic Strap Attachment Procedure

47
Instrument Installation in the Measurement Location
Magnetic strap attachment procedure
Read the precautions before performing the procedure. (p. 45)
You will need
• Phillips screwdriver (No. 2), at-head screwdriver or coin
• Z5004 or Z5020 Magnetic Strap (option)
OFF
22
11
1
Remove the test leads from the
instrument.
2

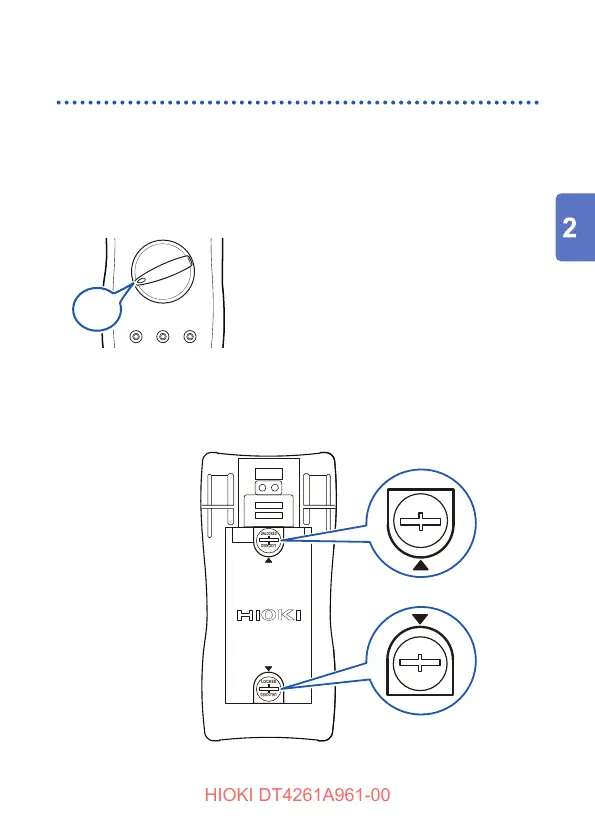

Set the rotary switch to OFF.
3
Release the locks for the battery cover.
Turn the locks 180° in the counterclockwise direction using the
screwdriver or coin to align [UNLOCKED] with the

symbol (2 places).
Rear
LOCKED
UNLOCKED
LOCKED
UNLOCKED
LOCKED
UNLOCKED
LOCKED
UNLOCKED
Lock
Continued to the next page →
