Diode Voltage Measurement

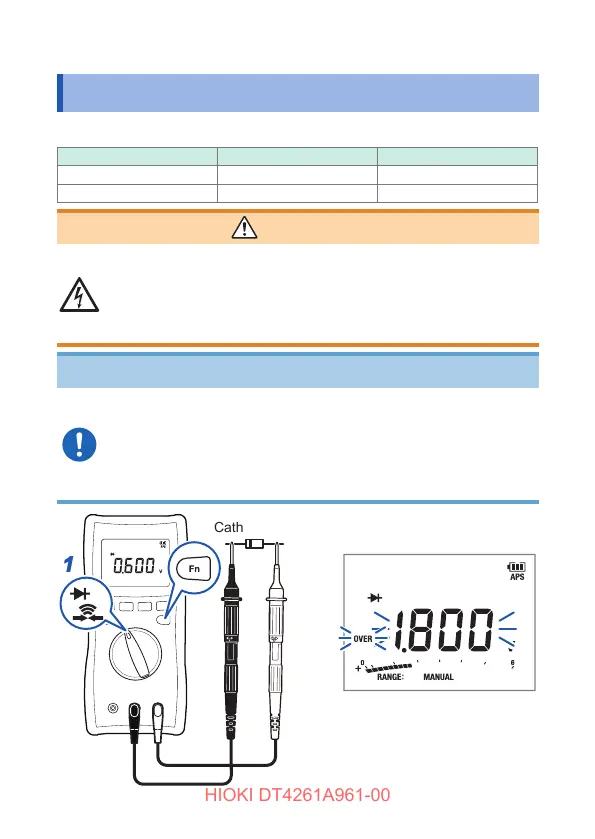

3.5 Diode Voltage Measurement
The forward voltage of the diode is measured.
Forward voltage Buzzer sound Red backlight
0.15 V to 1.8 V Intermittent –
Less than 0.15 V Continuous Turns on
WARNING
Turn o the power to the measuring circuit
before performing measurement.
Failure to do so could cause electric shock or damage
to the instrument.
NOTICE
Check the specications of the object to be
measured in advance.
Failure to do so could damage the object to be
measured. The open terminal voltage is approximately
2.0 V DC or less.
AnodeCathode
33
Black Red
11
44
22
In the case of the opposite
connection
The measured value and
[OVER] blink.
