Current Measurement

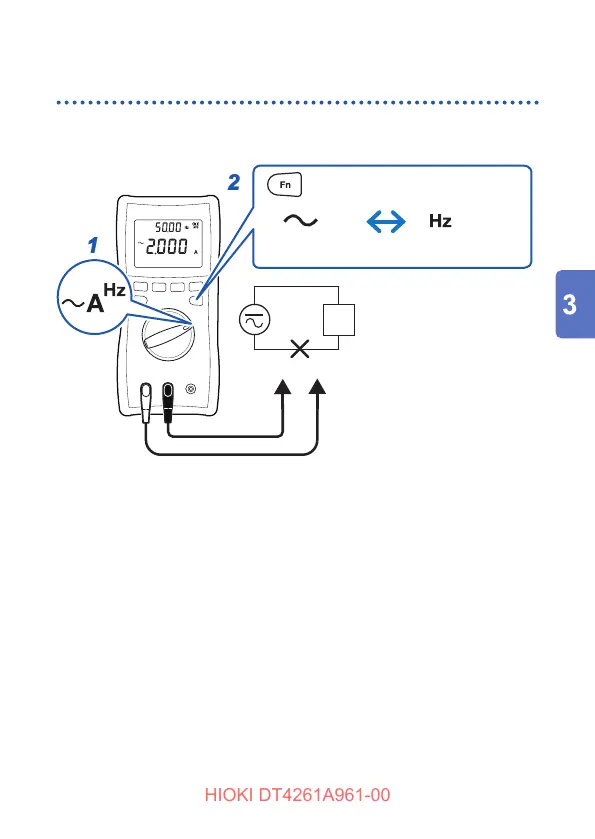

Measuring AC current
Measure the AC current.
Power
supply
Red Black
11
33
44
Load
22
Switches the measurement
items.
AC current Frequency
• Measurement is performed using DC coupling, and the AC
component’s RMS value is calculated in software and displayed.
• The bar graph displays RMS values for AC and DC components.
Additionally, the GENNECT Cross waveform display shows
waveforms for AC and DC components.
