Measurement with Clamp On Probe (AC Current)
3.9 Measurement with Clamp On Probe
(AC Current)

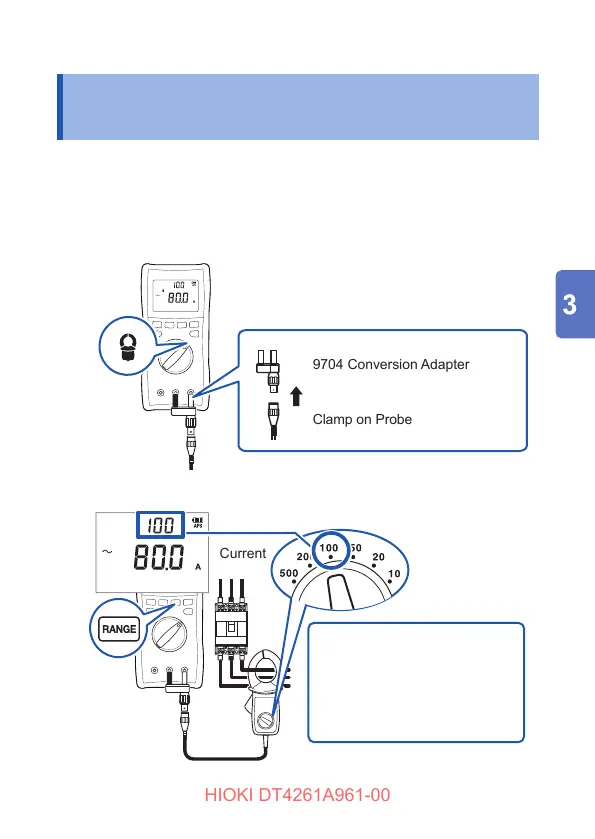

The current is measured using the Clamp on Probe (9010-50,
9018-50, 9132-50, option). To connect the Clamp on Probe to
this instrument, the 9704 Conversion Adapter (option) is required.
Before using the Clamp on Probe, be sure to read the Instruction
Manual which accompanies the Clamp on Probe.
Set the Clamp on Probe and the instrument to
the same range.
9704 Conversion Adapter
Clamp on Probe
Change the range in accordance
with the actual measurement.
If the range of the Clamp
on Probe is changed during
measurement, change the range
of the instrument as well.
Current
range
11
22
33
44
55
