48
Instrument Installation in the Measurement Location
4
Remove the battery cover.
5

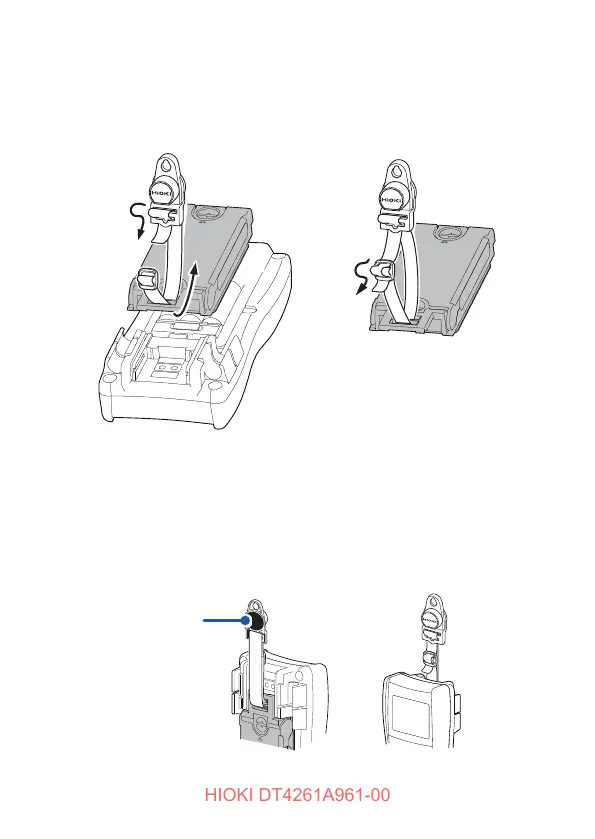

Attach the magnetic strap through the strap holes of the
battery cover.
-1-1
-2-2
-3-3
6
Reattach the battery cover.
7
Lock the battery cover.
Turn the locks 180° in the clockwise direction using the screwdriver or
coin and align [LOCKED] with the
symbol (2 places).
If the cover is not attached properly, the waterproof and dust-proof
performance cannot be maintained.
8
Place the magnet on the wall surface (metal plate), etc.
Magnet
