Inserting/Replacing Batteries
4
Remove the battery cover.
Do not remove the gasket (waterproof seal) from the battery cover.
(p. 25)
5
Remove the batteries (when replacing them).
6
Insert new batteries, being careful to match the battery
polarity.
Go to step 5 on p. 43 when installing the Z3210 Wireless Adapter.
7
Reattach the battery cover.
8
Lock the battery cover.
Turn the locks 180° in the clockwise direction using the screwdriver or
coin and align [LOCKED] with the
symbol (2 places).
If the cover is not attached properly, the waterproof and dust-proof
performance cannot be maintained.
LOCKED
UNLOCKED
LOCKED
UNLOCKED
55
66
44
77

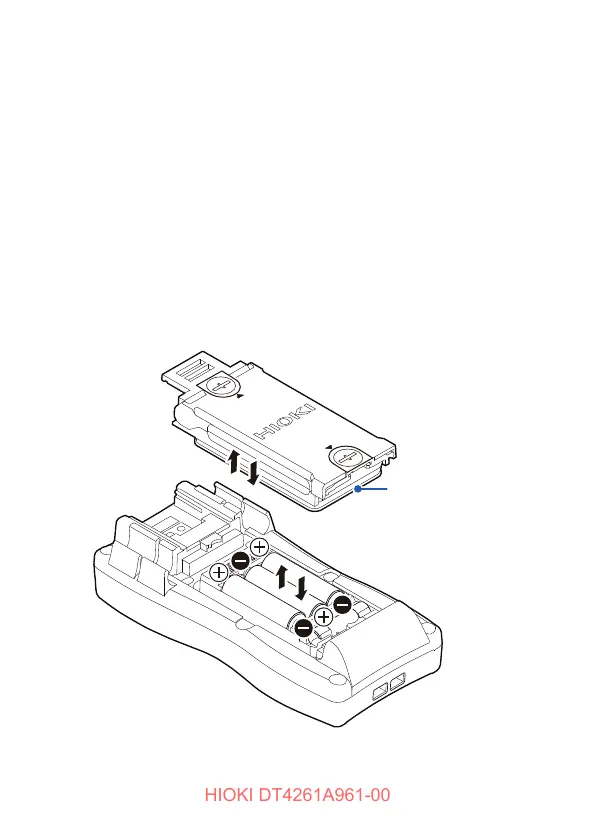

Gasket
(waterproof seal)
After the battery cover is removed, the fuse can be seen. For details
about how to replace the fuse, see p. 136.
