Setting up DHCP/BOOTP Server

201

V Add an entry for each device that will get its parameters from the

DHCP

server.

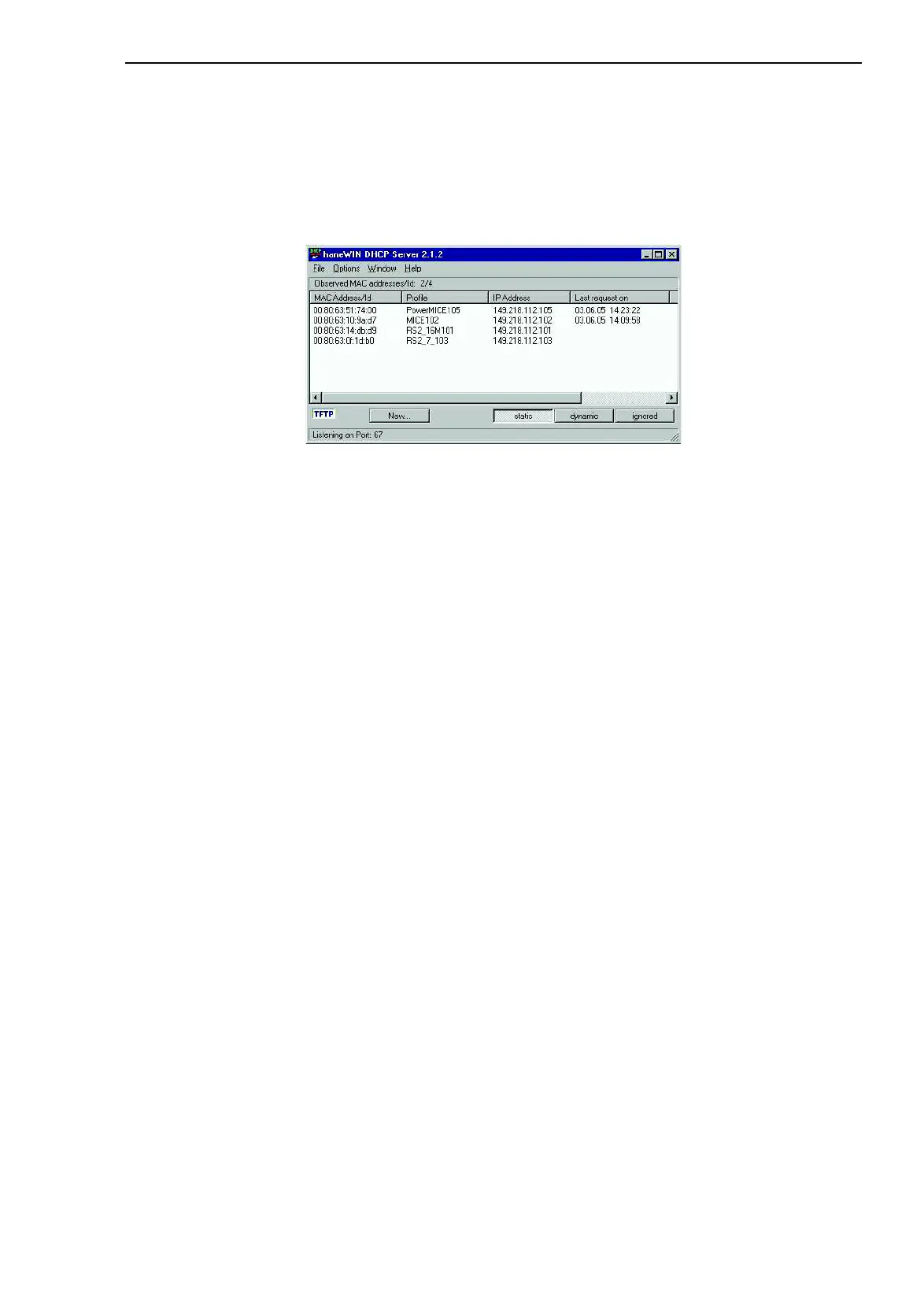

Fig. 71: DHCP server with entries
