2. If you install a Channel Board, HIE, or Disk Board, install here.
(1) Insert the FC/iSCSI Channel Board, HIE, or Disk Board.
(2) Push the Channel Board, HIE, or Disk Board in all the way.
NOTICE: Push the front side of each board all the way to insert it to the end.
(3) Tighten the two screws (blue) to x the Channel Board, HIE and Disk Board.

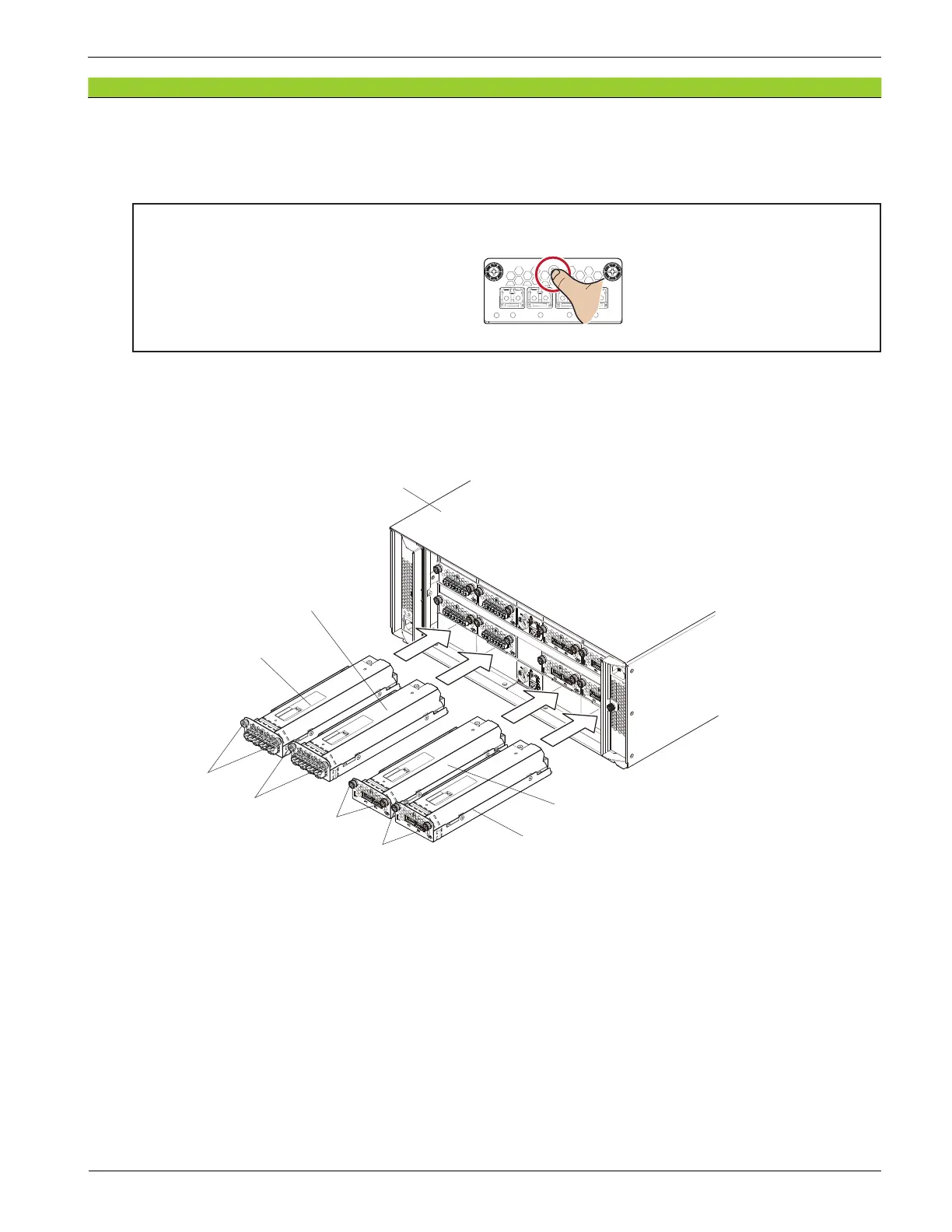

Figure 8-10 Installing the Channel Board, HIE, or Disk Board (DKC)
Channel Board
Screw (blue)
DKC
Screw (blue)
Channel Board
Disk Board
Screw (blue)
Screw (blue)
HIE
