(5) Install four BKMFs in the Controller Board.
(a) Keep the lever of BKMF pulled down toward you.
(b) Insert the BKMF up to the front of the shield nger.
(c) Insert the BKMF while pushing the side of its lever to the left until the pin of the lever goes
through the cutout of the chassis and stops.
(d) Raise the BKMF lever and tighten the screws (blue) and x it.

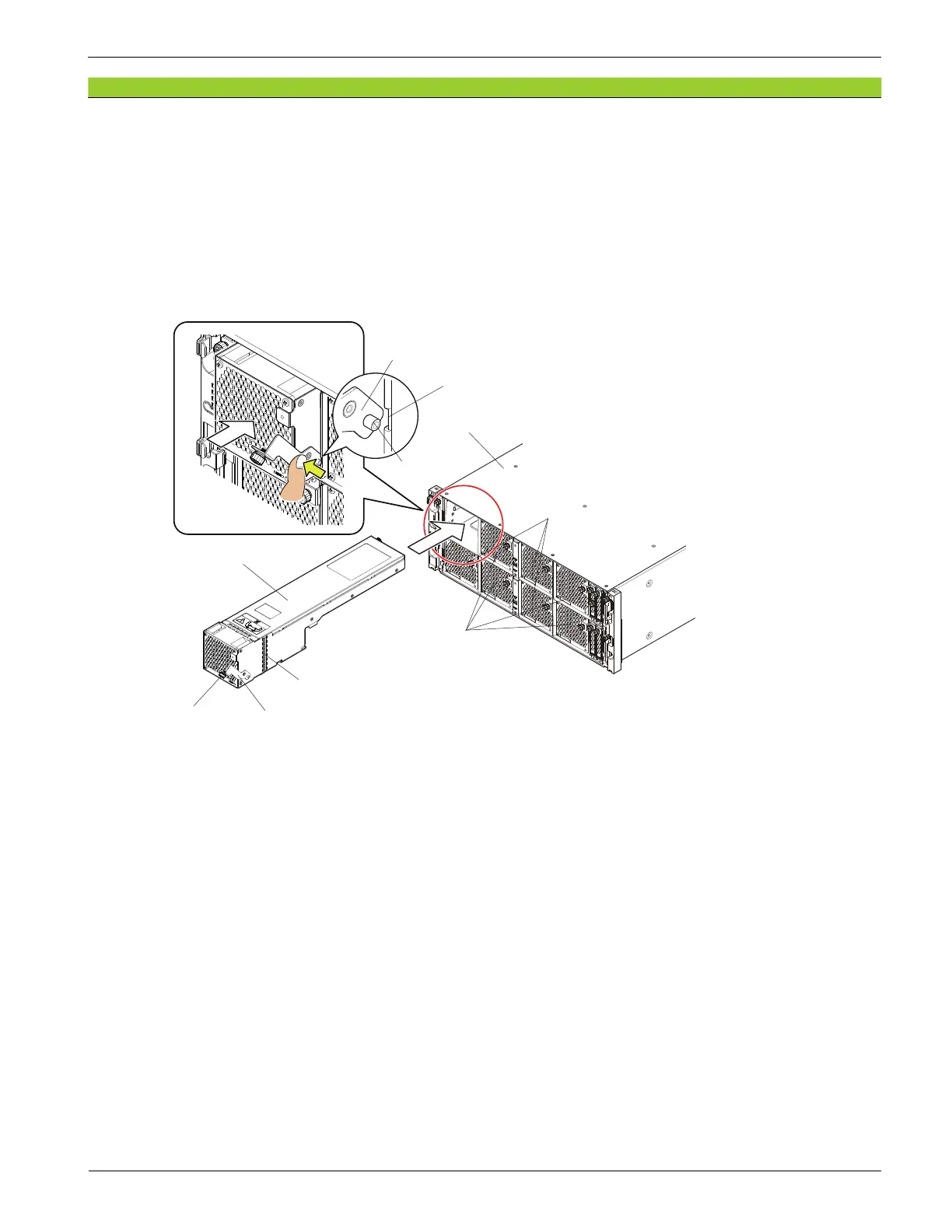

Figure 8-9 Installing BKMF (DKC)
Lever
DKC
Screw (blue)
BKMF
Shield nger
Side of lever
Pin
Cut
BKMF (FANM)
BKMF (FANM)
