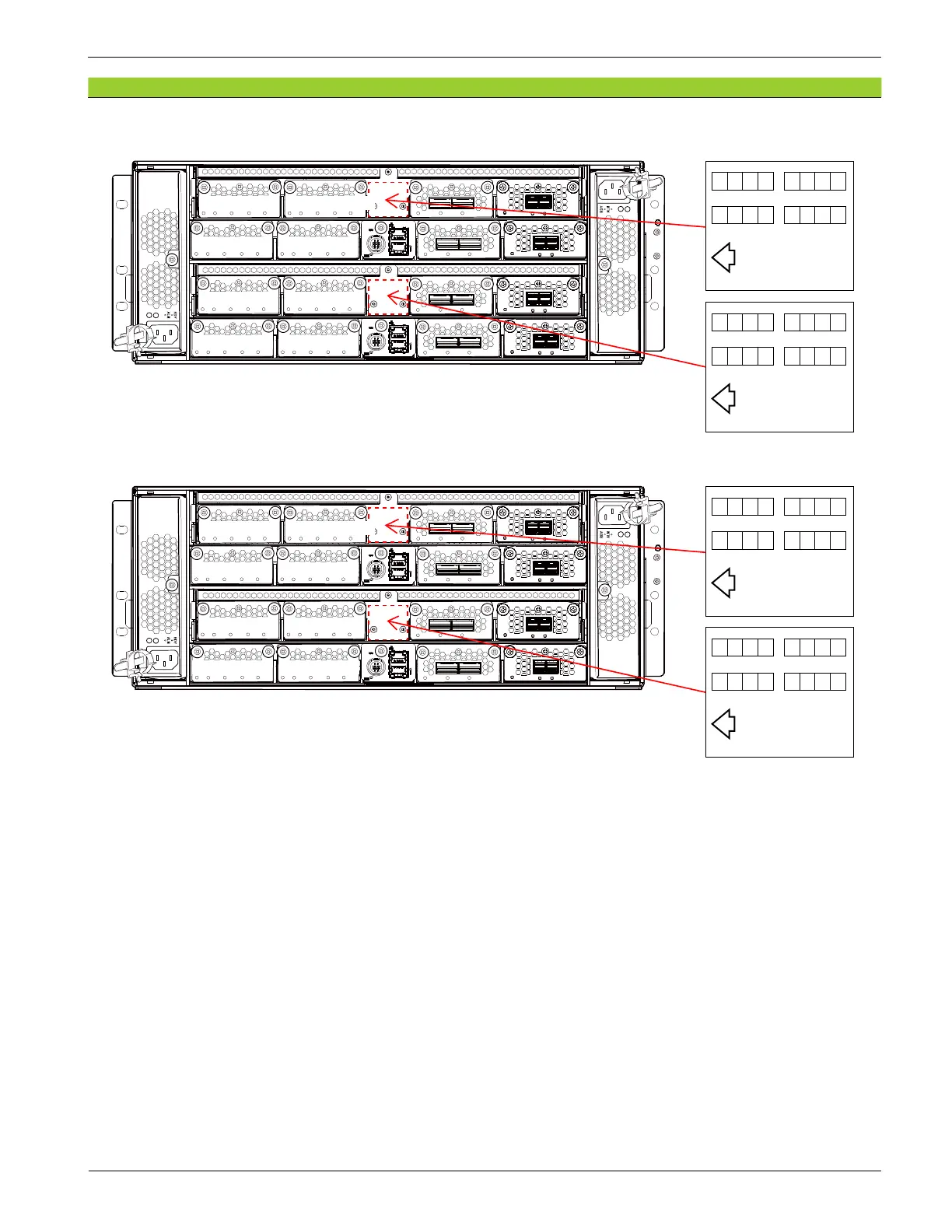

Figure 8-18 Label attachment (2/3)
1K 3K 5K 7K
1R 3R 5R 7R
1M 3M 5M 7M
1P 3P 5P 7P
DKC - 2 CTL22
CHB Po r t Numb e r
1J 3J 5J 7J 1L 3L 5L 7L
1N 3N 5N 7N 1Q 3Q 5Q 7Q
DKC - 2 CTL21
CHB Po r t Numb e r
2K 4K 6K 8K
2R 4R 6R 8R
2M 4M 6M 8M
2P 4P 6P 8P
DKC - 3 CTL32
CHB Po r t Numb e r
2J 4J 6J 8J 2L 4L 6L 8L
2N 4N 6N 8N 2Q 4Q 6Q 8Q
DKC - 3 CTL31
CHB Po r t Numb e r
1K/3K/5K/7K
Rear view of DKC-2
1M/3M/5M/7M
1P/3P/5P/7P 1R/3R/5R/7R
1J/3J/5J/7J 1L/3L/5L/7L
1N/3N/5N/7N 1Q/3Q/5Q/7Q
Rear view of DKC-3
2K/4K/6K/8K 2M/4M/6M/8M
2P/4P/6P/8P 2R/4R/6R/8R
2J/4J/6J/8J 2L/4L/6L/8L
2N/4N/6N/8N 2Q/4Q/6Q/8Q
