1. Remove the appropriate one from the sheet.
2. Attach the CHB port number label to the location for every CTL of DKC (See Figure 8-16 to Figure
8-19).
3. Check whether the arrow of the label points to the channel board side after attaching the label.

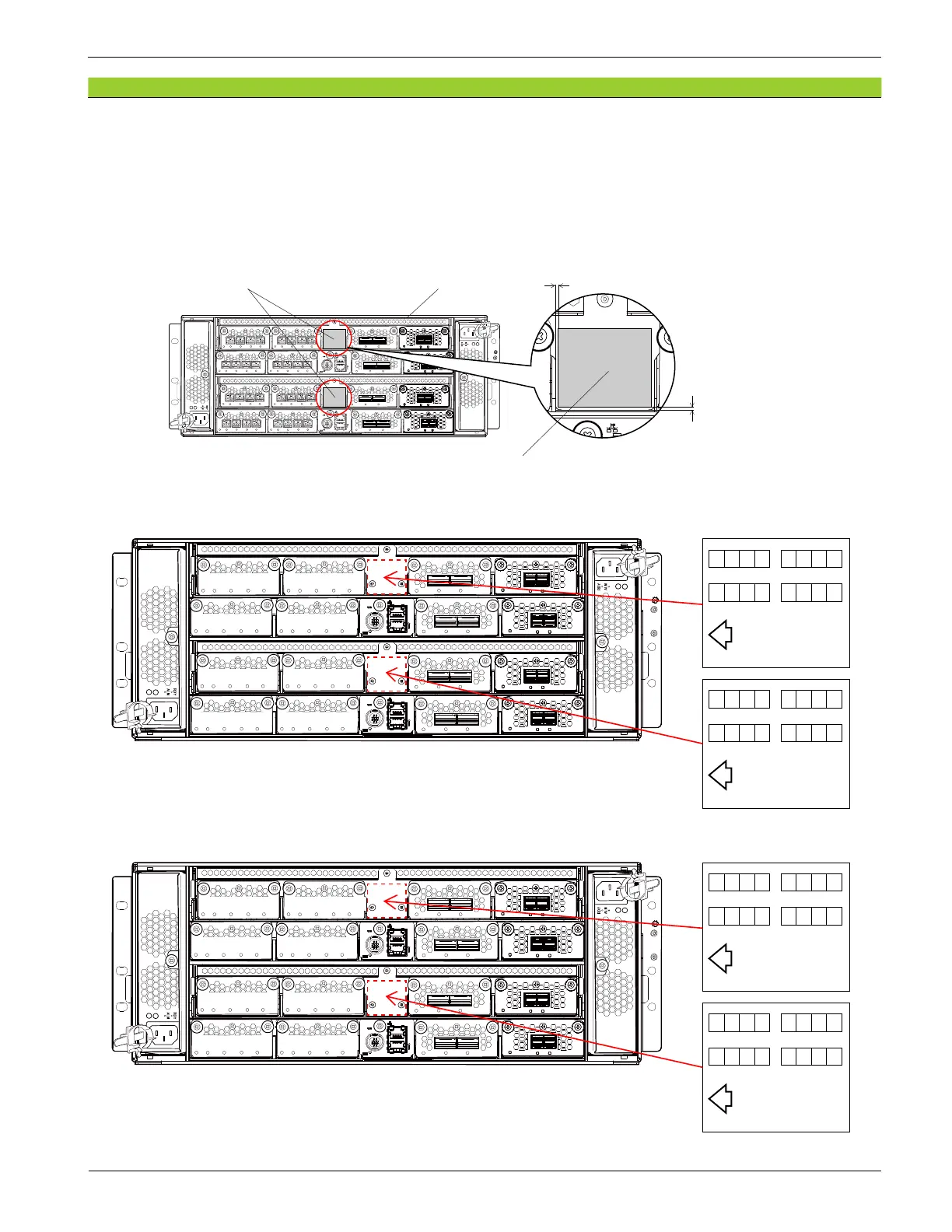

Figure 8-16 Label attachment locations
Figure 8-17 Label attachment (1/3)
1B 3B 5B 7B
1G 3G 5G 7G
1D 3D 5D 7D
1F 3F 5F 7F
DKC - 0
CTL02
CHB Po r t Numb e r
1A 3A 5A 7A 1C 3C 5C 7C
1E 3E 5E 7E 1G 3G 5G 7G
DKC - 0
CTL01
CHB Po r t Numb e r
2B 4B 6B 8B
2H 4H 6H 8H
2D 4D 6D 8D
2F 4F 6F 8F
DKC - 1
CTL12
CHB Po r t Numb e r
2A 4A 6A 8A 2C 4C 6C 8C
2E 4E 6E 8E 2G 4G 6G 8G
DKC - 1
CTL11
CHB Po r t Numb e r
1B/3B/5B/7B
Rear view of DKC-0
1D/3D/5D/7D
1F/3F/5F/7F 1H/3H/5H/7H
1A/3A/5A/7A 1C/3C/5C/7C
1E/3E/5E/7E 1G/3G/5G/7G
Rear view of DKC-1
2B/4B/6B/8B 2D/4D/6D/8D
2F/4F/6F/8F 2H/4H/6H/8H
2A/4A/6A/8A 2C/4C/6C/8C
2E/4E/6E/8E 2G/4G/6G/8G
CHB Port number label Controller Chassis 1 mm
Rear view
1 mm
CHB Port number label
Rev.1
INST(IN)08-05-20
