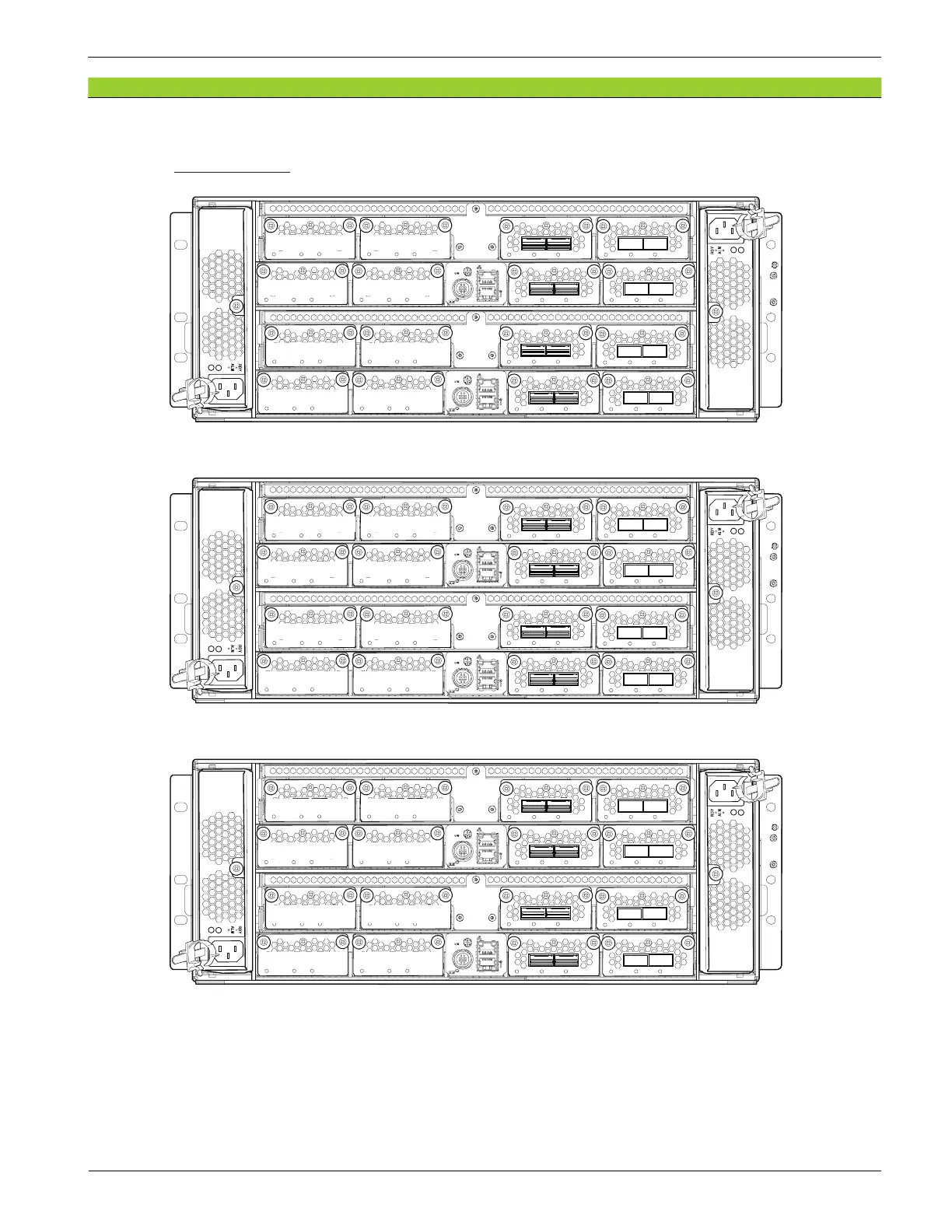

Figure 9-8 Connection Port for iSCSI Cables (2/2)
CHB Port Number
Rear view of DKC-4
9B/BB 9D/BD
9F/BF
9A/BA
9E/BE
9H/BH
9C/BC
9G/BG
Rear view of DKC-3
2K/4K 2M/4M
2P/4P
2J/4J
2N/4N
2R/4R
2L/4L
2Q/4Q
Rear view of DKC-5
AB/CB AD/CD
AF/CF
AA/CA
AE/CE
AH/CH
AC/CC
AG/CG
