VSP5100 and 5100H SSVP1 in which SSVP1 is not installed
HSNBX-0
HSNBX-1
Cable duct
LAN cable kit
Rear view
To ports U0-U3
VSP5100 and 5100H in which SSVP1 is installed
HSNBX-0
HSNBX-1
Cable duct
LAN cable kit
Rear view
To ports U0-U3
To ports U0-U3

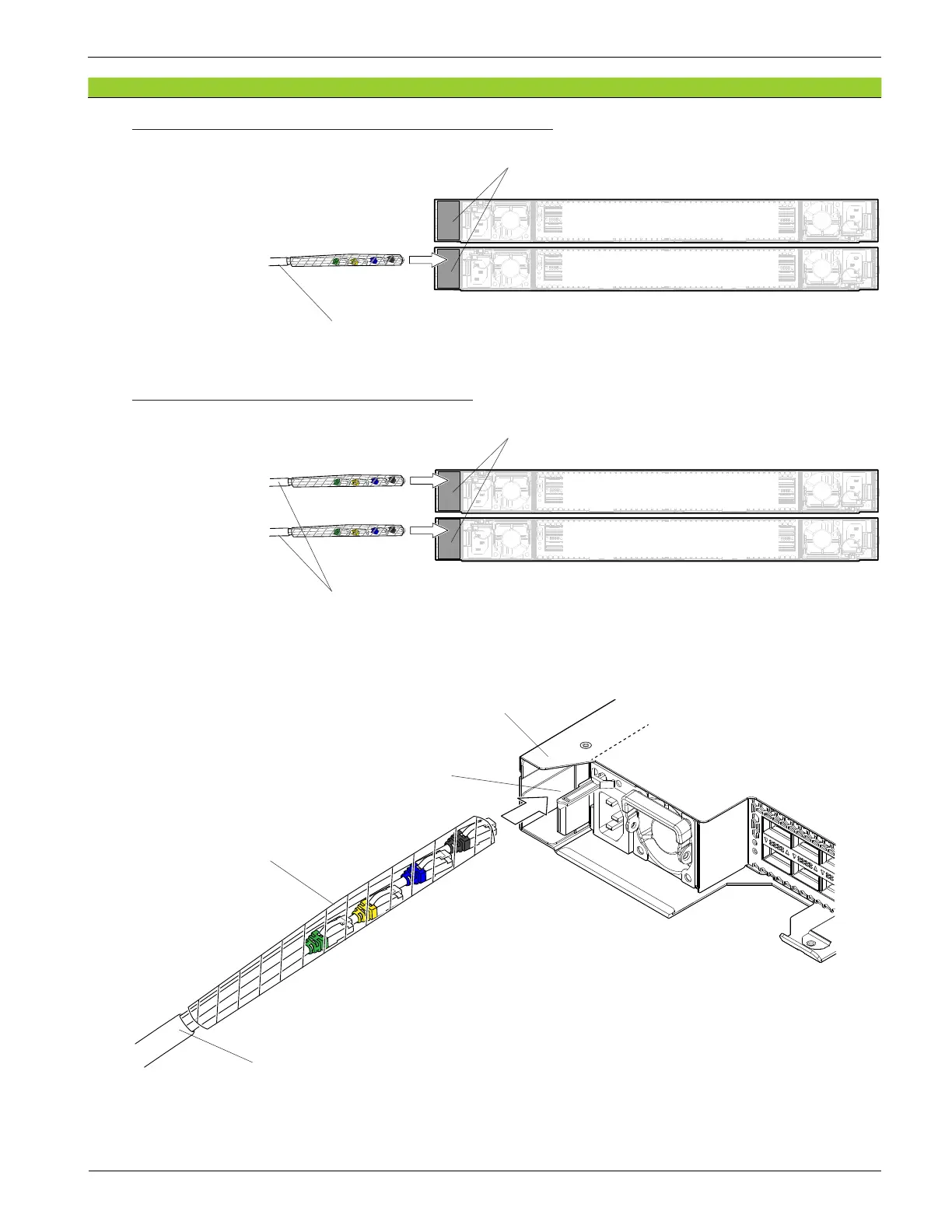

Figure 9-20 Installing LAN Cable Kit
*: Pass the LAN cable kit through the cable duct with the protection bag attached to the LAN cable kit.
HSNBX
Cable duct
Protection bag (*)
LAN cable kit
Rear view
