INST(IN)09-03-40
(5) Attach the four labels to the connectors for the rear connection per LAN cable kit.

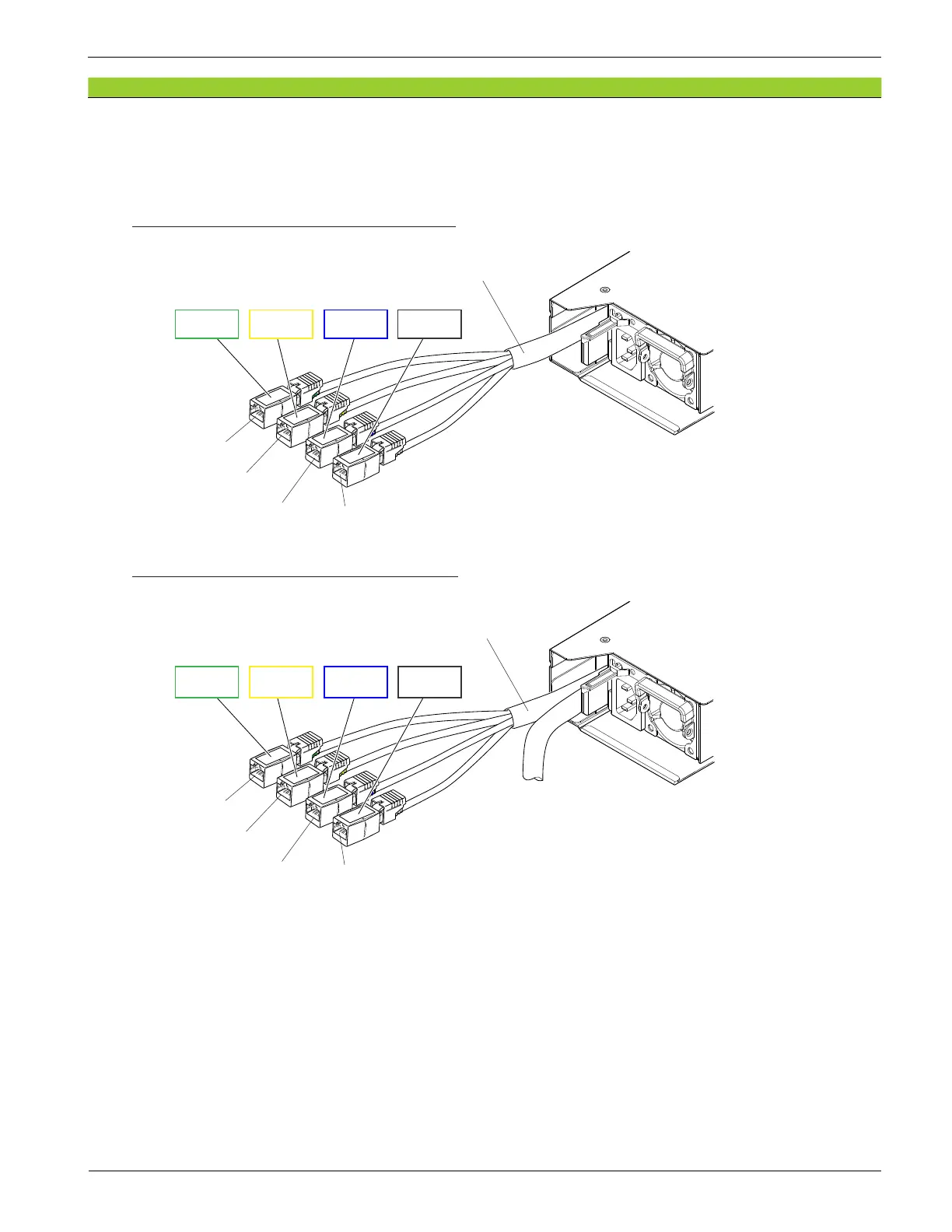

Figure 9-22 Attaching Labels
LAN Cable Kit Connected to Upper Four Ports
LAN Cable Kit Connected to Lower Four Ports
Rear view
LAN cable kit
U3 (clear)
[U2] (blue)
U1 (yellow)
[U0] (green)
[U0] U1-DKC0 [U2] U3-DKC1
Label Label Label Label
Rear view
LAN cable kit
L3 (clear)
[L2] (blue)
L1 (yellow)
[L0] (green)
Label Label Label Label
L0-DKC2 L1-DKC3 L2-DKC4 L3-DKC5
