3. Install the LAN cables.
• For VSP 5500 and VSP 5500H in which SSVP1 is not installed
(1) Connecting the LAN cables to the upper LAN ports on SSVP0 via the LAN cable kit.
(a) Connect the LAN cable between the LAN port (U1) on SSVP0 and the LAN board 1
(Management LAN port) on DKC-0.
(b) Connect the LAN cable between the LAN port (U3) on SSVP0 and the LAN board 1
(Management LAN port on the LAN board 1 in DKC-1.

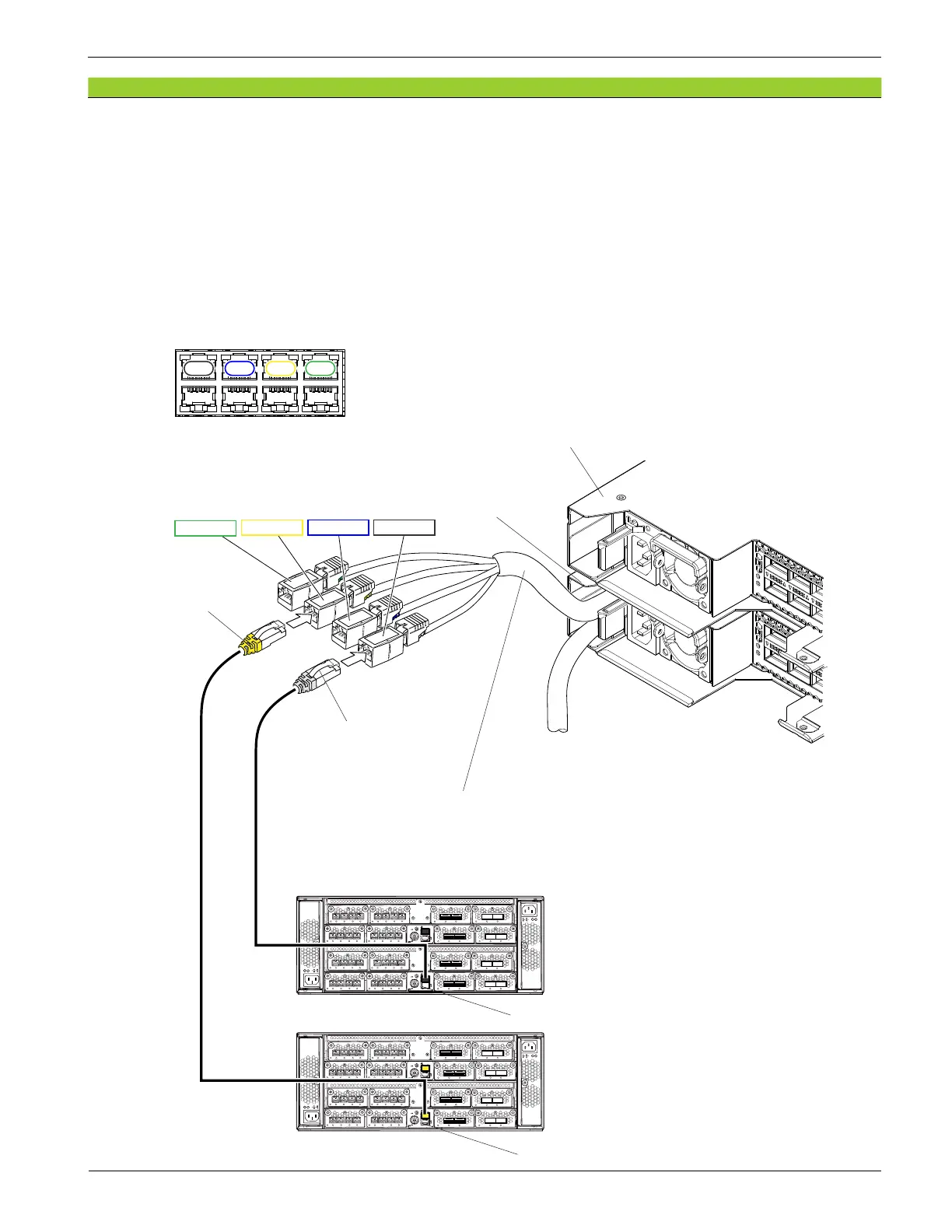

Figure 9-23 Connecting LAN Cables
U0U1U2U3
HSNBX-0 前面
（SSVP 0）
[U0]
U1-DKC0
[U2]
U3-DKC1
L0L1L2L3
Front view of HSNBX-0
(SSVP1)
HSNBX-1
HSNBX-0
LAN cable
Rear view
LAN cable kit
(SSVP0, U0-U3)
LAN cable
LAN board 2 (Management LAN port)
LAN board 1 (Management LAN port
DKC-1
DKC-0
