INST(IN)09-03-70
• For VSP 5100 and VSP 5100H in which SSVP 1 is not installed
(1) Connecting the LAN cables to the upper LAN ports on SSVP0
(a) Connect the LAN cable between the LAN port (U1) on SSVP0 and the Management LAN port
on the LAN board 1 in DKC-0.
(b) Connect the LAN cable between the LAN port (U3) on SSVP0 and the Management LAN port
on the LAN board 2 in DKC-1.
(c) Connect the LAN cable between the Maintenance LAN port on the LAN board 1 in DKC-0
and the Maintenance LAN port on the LAN board 2 in DKC-1.

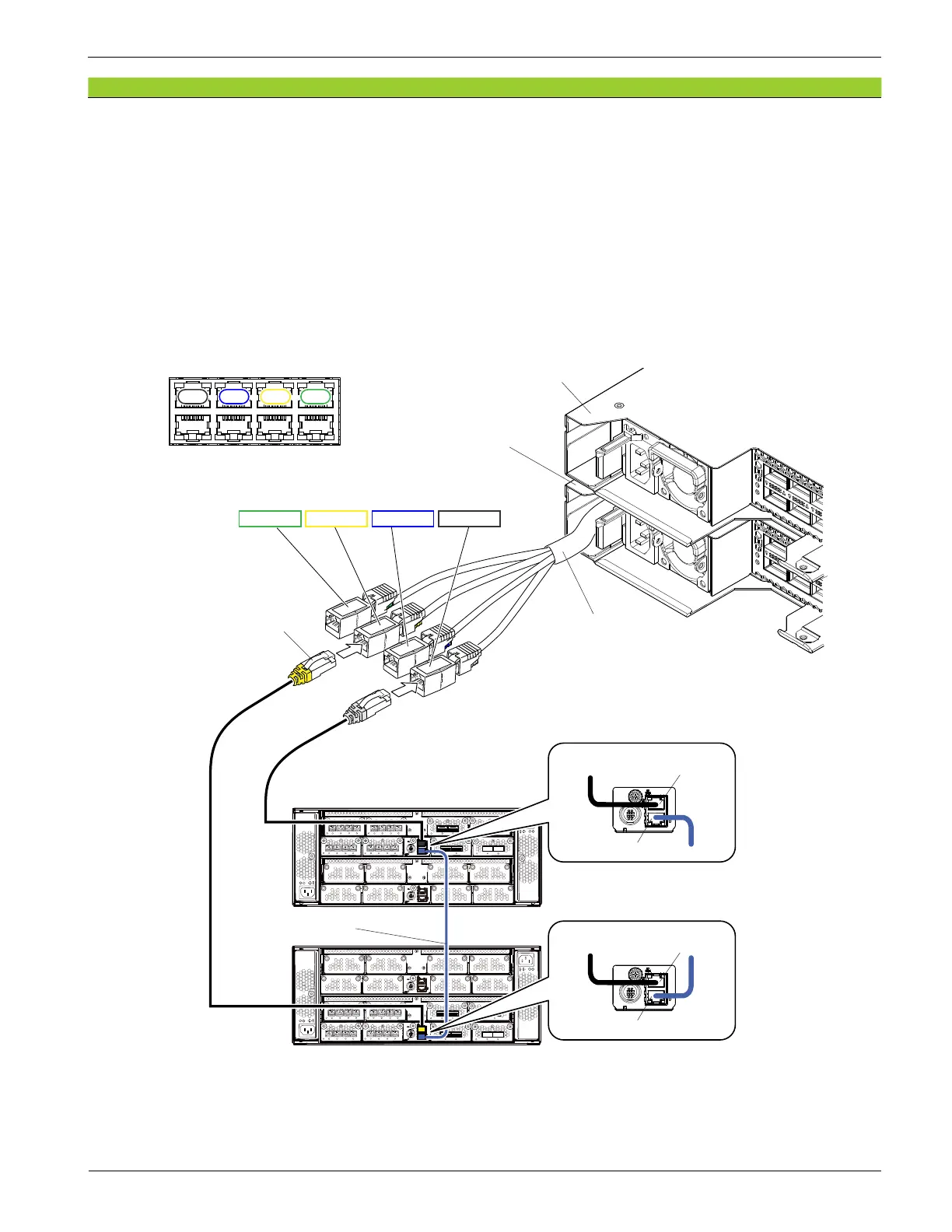

Figure 9-27 Connecting LAN Cables
U0U1U2U3
HSNBX-0 前面
（SSVP 0）
DKC-1
DKC-0
[U0]
U1-DKC0
[U2]
U3-DKC1
HSNBX-1
HSNBX-0
LAN cable
Rear view
LAN cable kit
(SSVP0, U0-U3)
Maintenance LAN port
Front view of HSNBX-0
(SSVP0)
Management LAN port
LAN board 2
Maintenance LAN port
Management LAN port
LAN board 1
LAN cable
