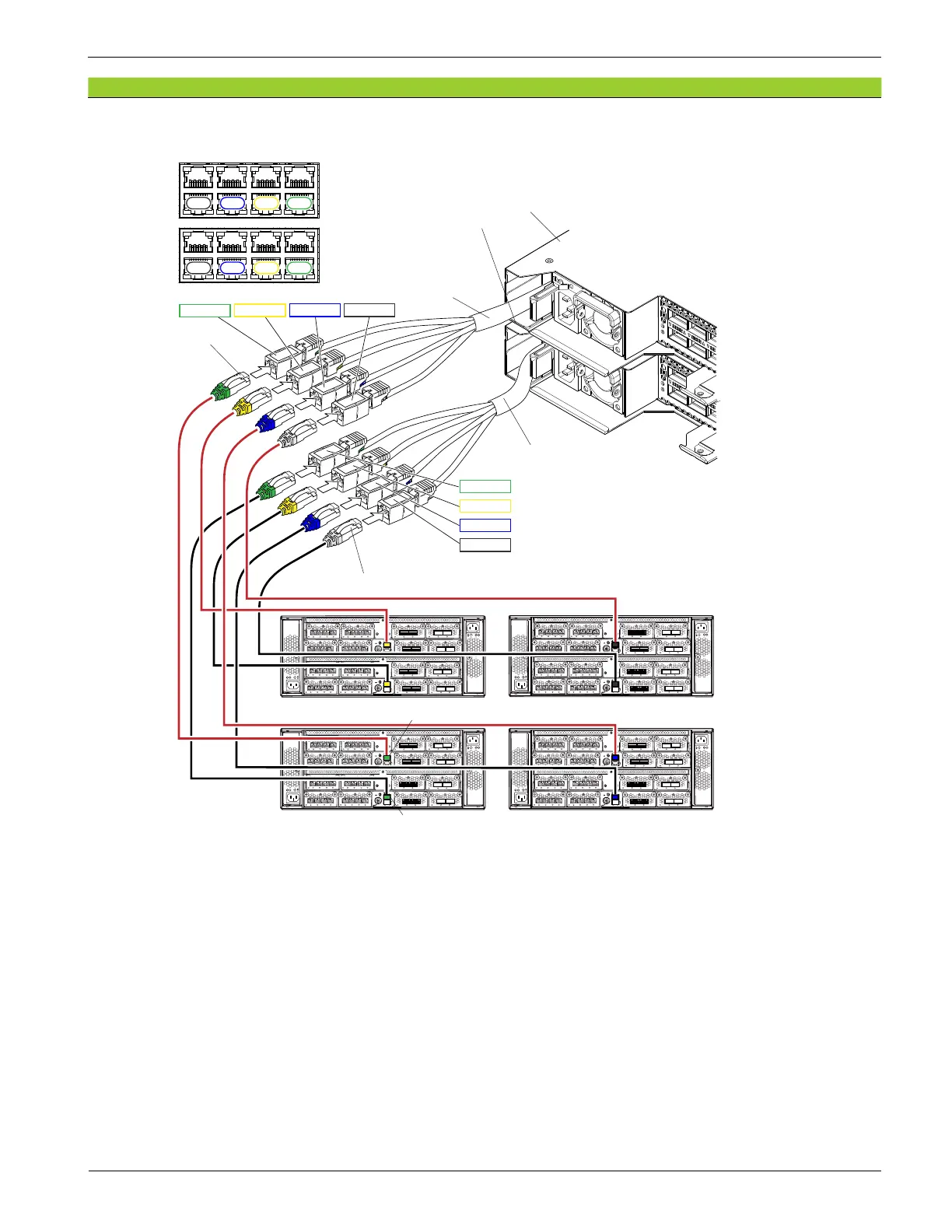

Figure 9-26 Connecting LAN Cables
DKC-3
DKC-2
DKC-1
DKC-0
L0L1L2L3
L0L1L2L3
HSNBX-0 前面
HSNBX-1 前面
（SSVP 0）
（SSVP 1）
L0-DKC2
L1-DKC3
L2-DKC4
L3-DKC5
L0-DKC2
L1-DKC3
L2-DKC4
L3-DKC5
HSNBX-1
HSNBX-0
LAN cable kit
(SSVP1, L0-L3)
LAN cable
Rear view
LAN cable kit
(SSVP0, L0-L3)
LAN cable
Front view of HSNBX-1
(SSVP1)
Front view of HSNBX-0
(SSVP0)
DKC-3
DKC-5
DKC-2
DKC-4
LAN board 2 (Management LAN port)
LAN board 1 (Management LAN port)
