4. LAN cable routing

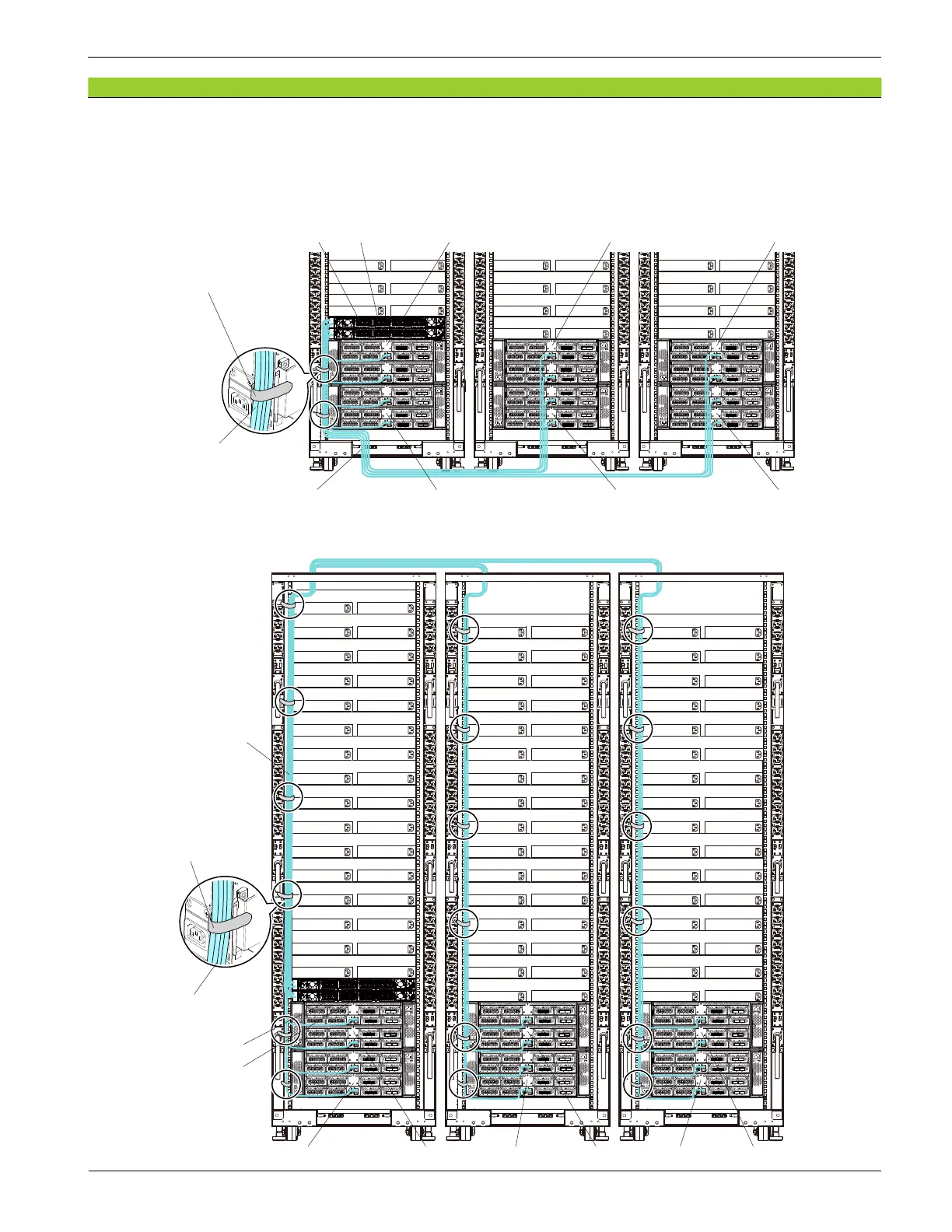

Routing examples of the LAN cable are shown in Figure 9-29 and Figure 9-30.
Figure 9-29 When Routing LAN Cables under the Racks
Figure 9-30 When Routing LAN Cables over the Racks
HSNBX-1 HSNBX-0 DKC-1
DKC-0
DKC-3
DKC-2
DKC-5
DKC-4
Loop cable tie
LAN Cable
LAN Cable
HSNBX-1
HSNBX-0
DKC-1DKC-0 DKC-3DKC-2 DKC-5DKC-4
Loop cable tie
LAN Cable
LAN Cable
