4. Installation of Rack Frames
Prevent the overturning of the equipment when moving it:
When moving the equipment, check that there are no obstacles or holes on the floor and make
sure that the equipment is moved by two or more persons. Also, be sure to keep the stability
of the equipment to prevent the overturning of it.
(1) Move the Rack Frames to the installation location.
(2) Line up the position between the rack frames to connect.
(3) Adjust the height and the inclination of the Rack Frames by the four screw jacks in the lower part
of the Rack Frames.

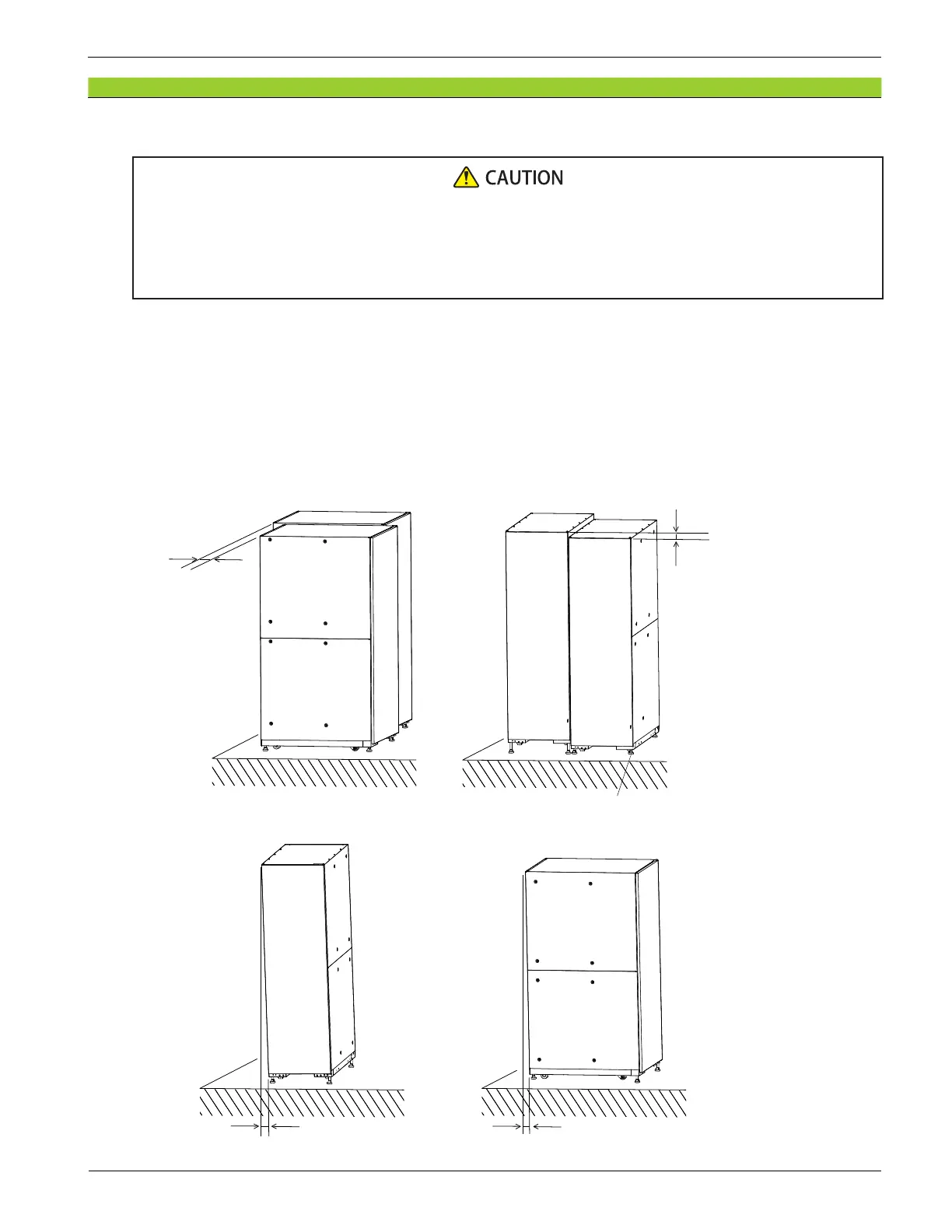

Figure 2-10 Storage system Side to Side, Height, Tilt
0 ± 2 mm
0 ± 2 mm
0 ± 2 mm
0 ± 2 mm
Side to Side Height
Tilt (Lateral) Tilt (Longitudinal)
Leveling bolt
