2. Earthquake-resistant Plan

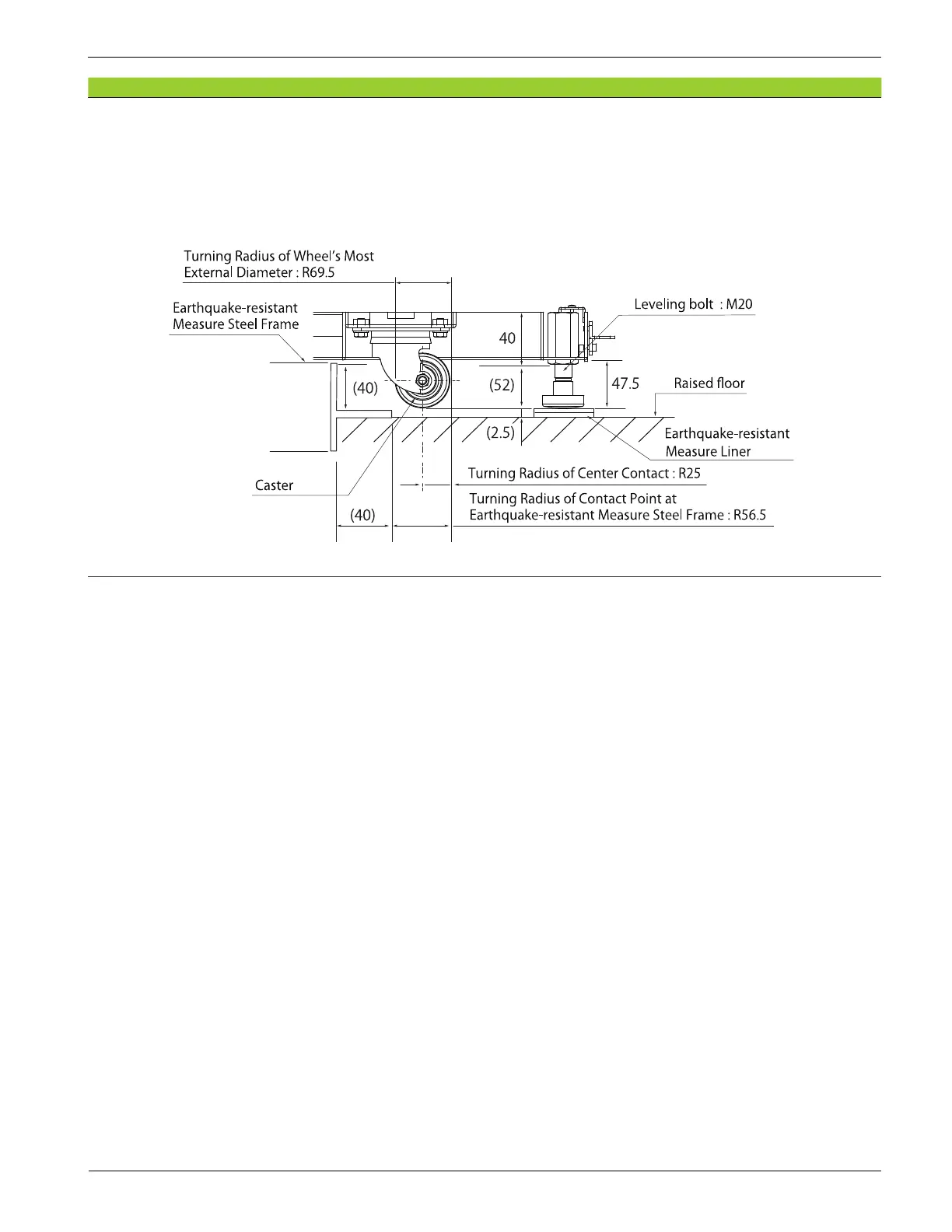

Figure 2-9 shows a cross-sectional diagram of the floor of the A-6516-RKU3 rack frame.
Refer to it for the earthquake-resistant plan.
Figure 2-9 Cross-sectional View of Floor of A-6516-RKU3 Rack Frame
3. Move the unpacked RKU rack frame to the site where it is to be installed.
