(2) Connect the front of the rack frames with the two joint plates and the eight screws.

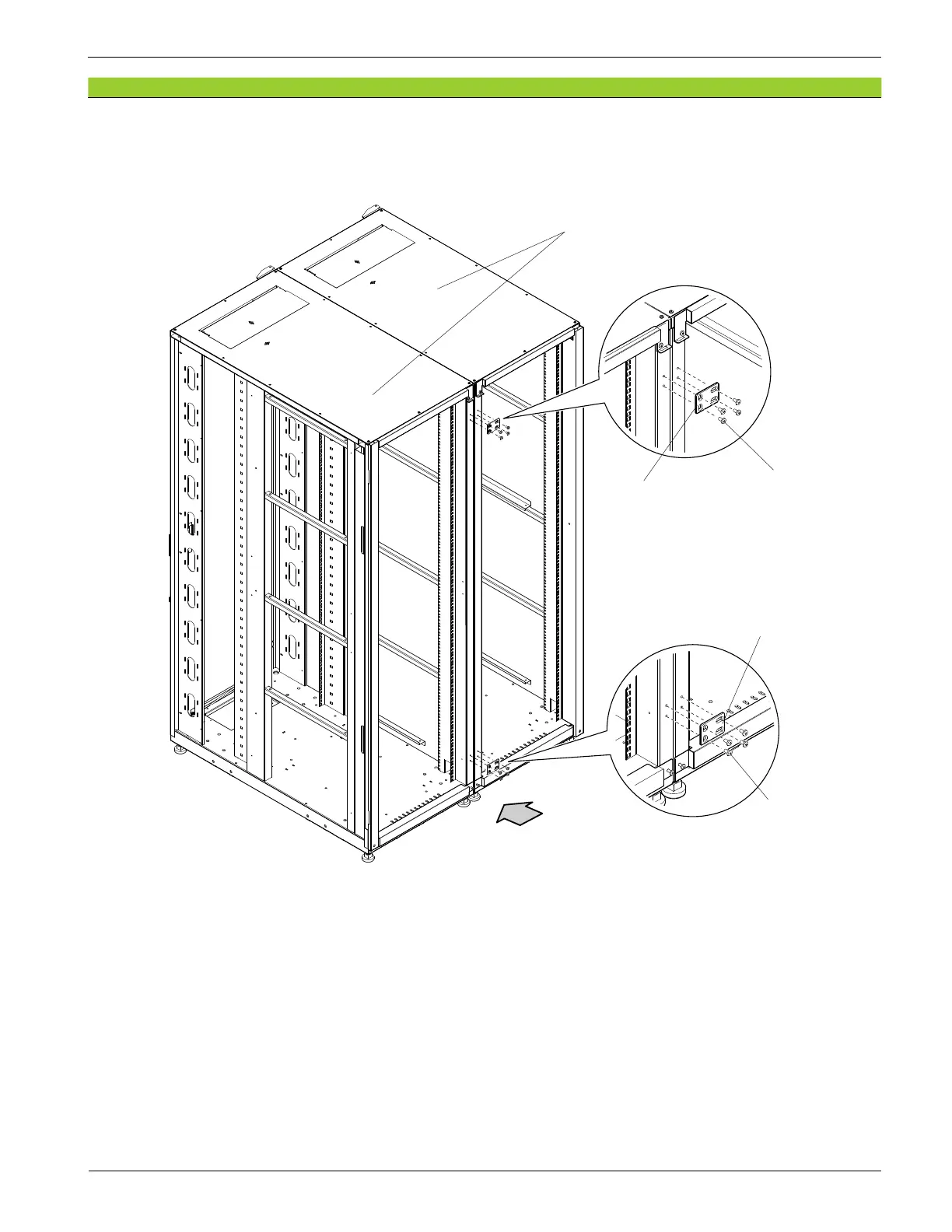

Figure 2-13 Connection of Rack Frames (Front)
Rack Frame
Screw
(SC520N)
Front View
Joint Plate
Joint Plate
Screw
(SC520N)
