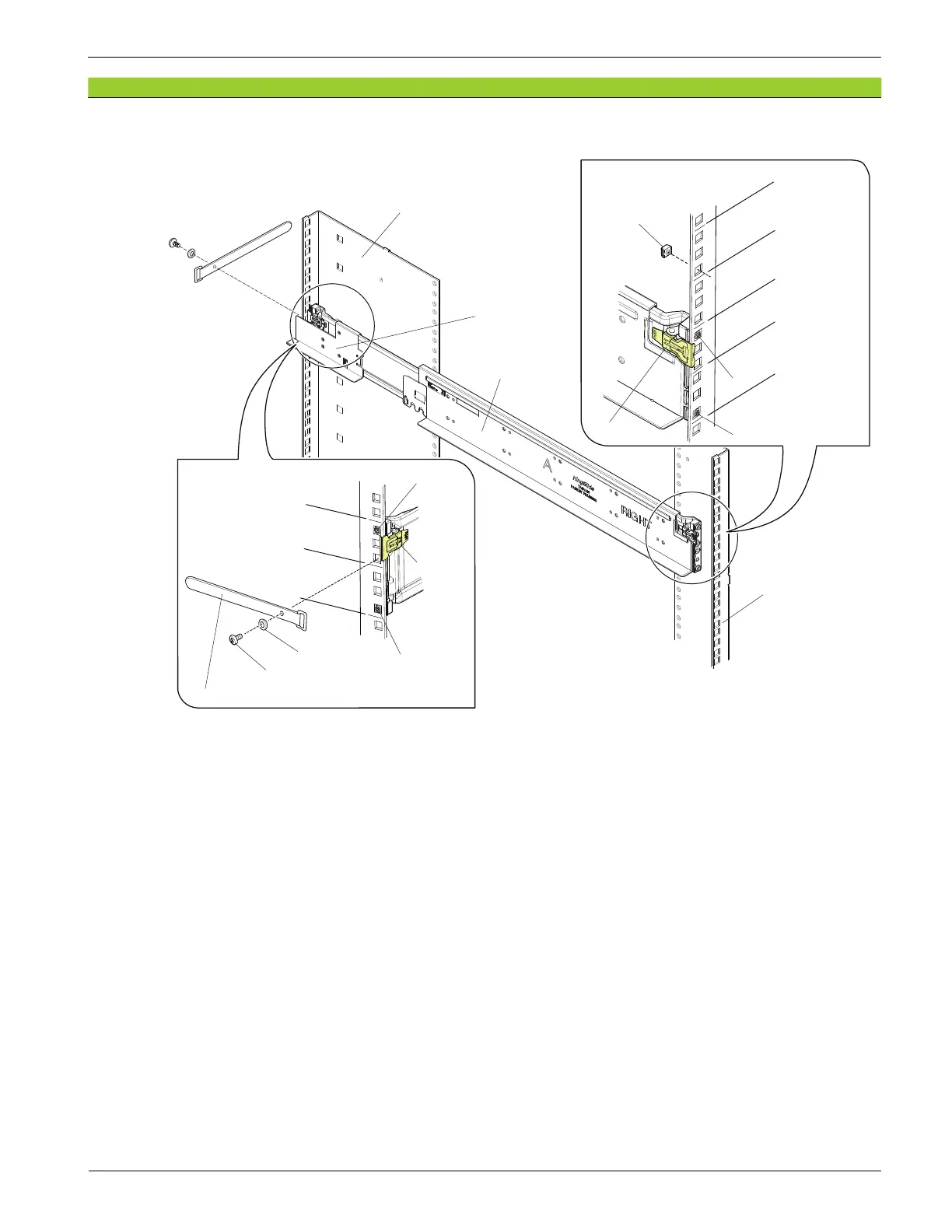

Figure 3-6 Installing Rails for Controller Chassis (with Stopper)
Rack frame (rear side)
Binding screw (M5 × 10)
Clip
Pin
Clip
Pin
Rail (R)
Rack frame
(front side)
Unit boundary
Unit boundary
Unit boundary
Unit boundary
Unit boundary
Cage nut
or
rack nut
LL washer
Pin
Pin
Unit boundary
Unit boundary
Unit boundary
Stopper
Loop cable tie
Rev.2
INST(IN)03-01-52
