(6) Bring down two Clips on the front and rear edge of the rail.
(7) Fit Positioning Pins

and

of the rail (two pins in total on the front and back edge) into holes on
the right side of the rack at the position where you want to install the Drive Box.
(8) Raise the Clips of the rail to x the rail to the rack.

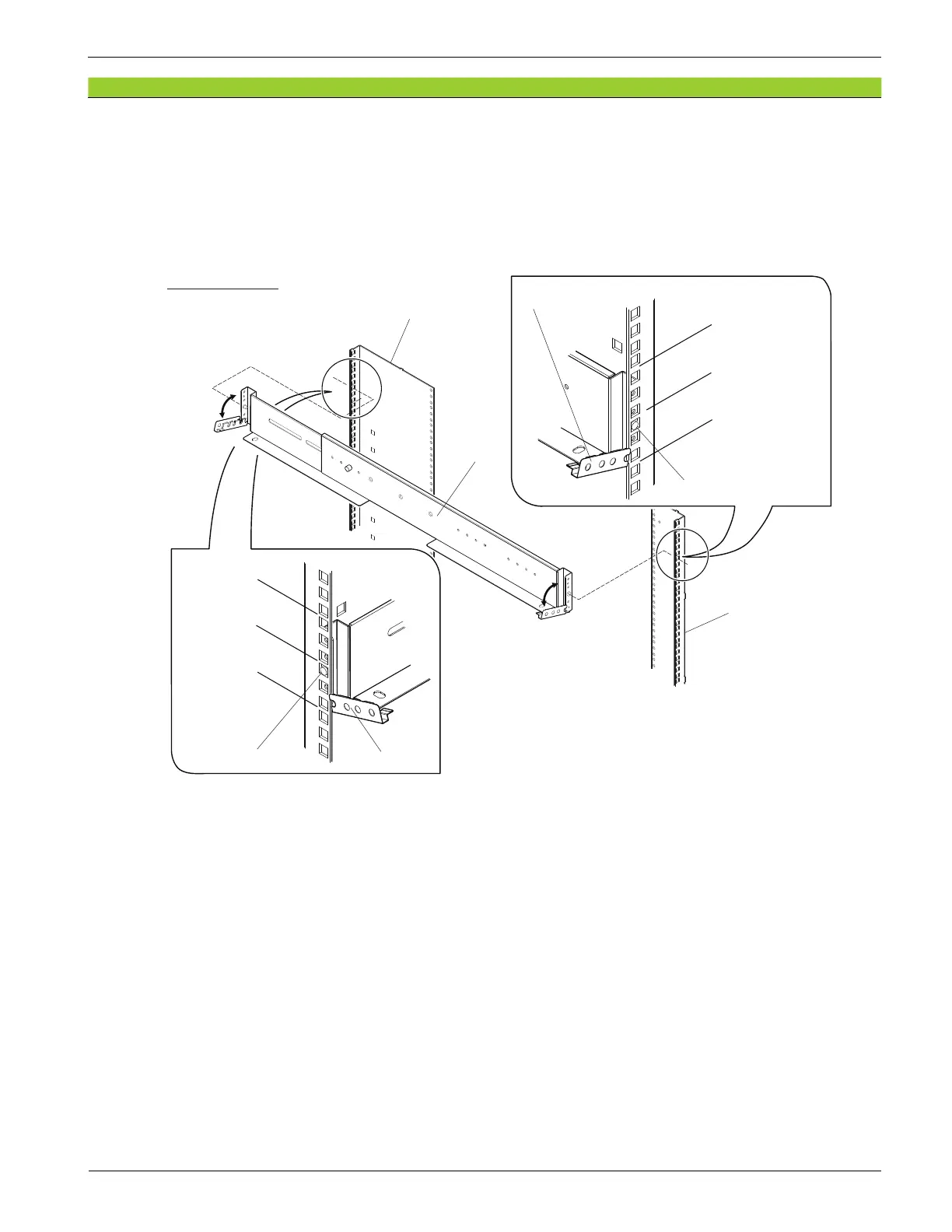

Figure 3-8 Installing Rails
Positioning pin

Rail
Unit boundary
Clip
Clip
Positioning pin

Frame (front right side)
Frame (rear right side)
Unit boundary
Unit boundary
Unit boundary
Unit boundary
Unit boundary
Right side of rack
