2. Remove the Controller Board.

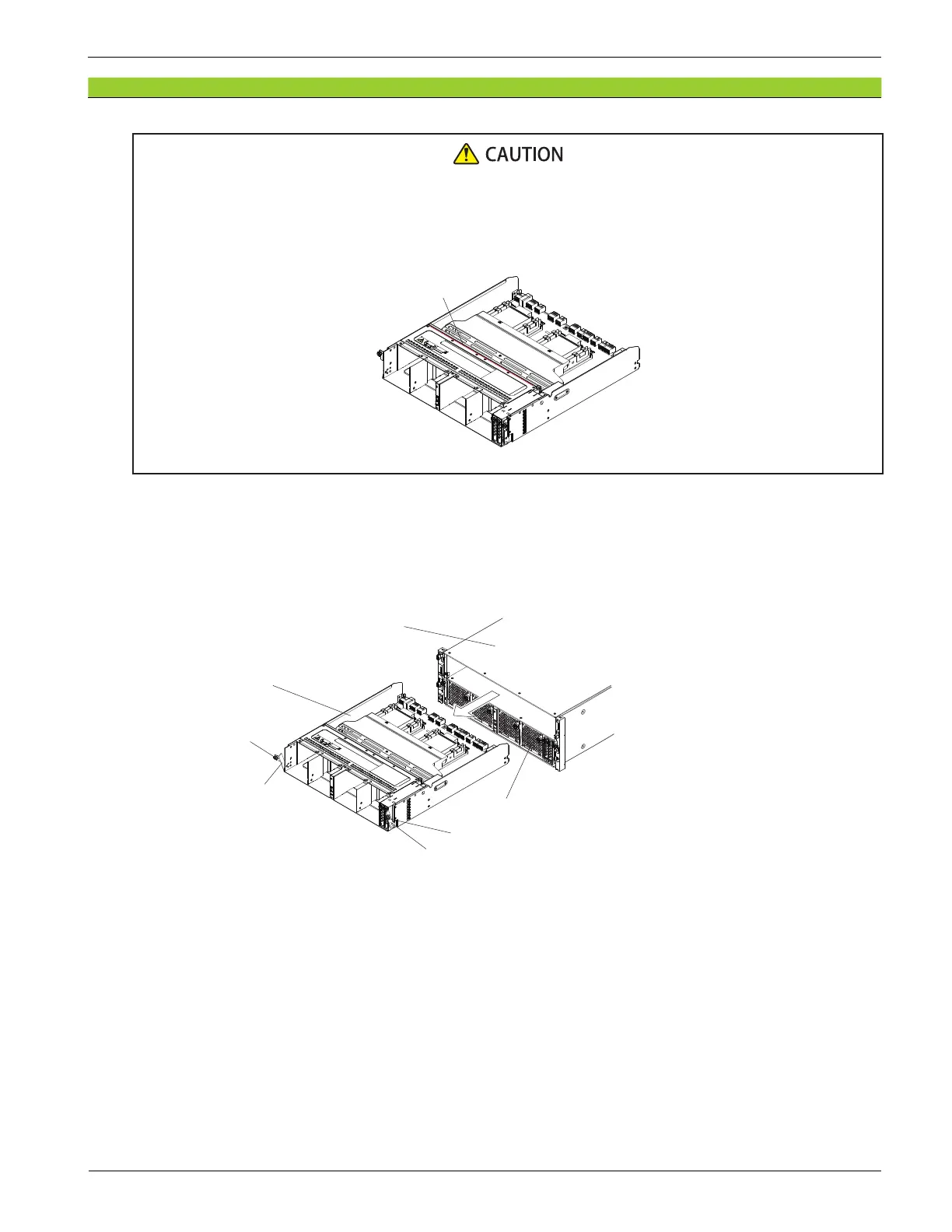

Dropping the Controller Board may cause injury. Be aware of the red line marked on the
Controller Board top - when sliding the Controller Board out of the array past this mark, keep a
rm hold on the Controller Board.
Red line
(1) Loosen the right and left screws (blue) and open the lever.
(2) Open the lever completely and pull out the Controller Board toward you to remove.
Figure 5-5 Removing Controller Board (DKC)
Controller Board 2
Screw (blue)
Lever
Screw (blue)
Lever
Controller Board 1
DKC
