3. Remove the Channel Board, HIE, or Disk Board.
(1) Loosen two screws (blue) xing the Board.
(2) Hold the screws (blue) and pull out the Channel Board, HIE, or the Disk Board to remove.

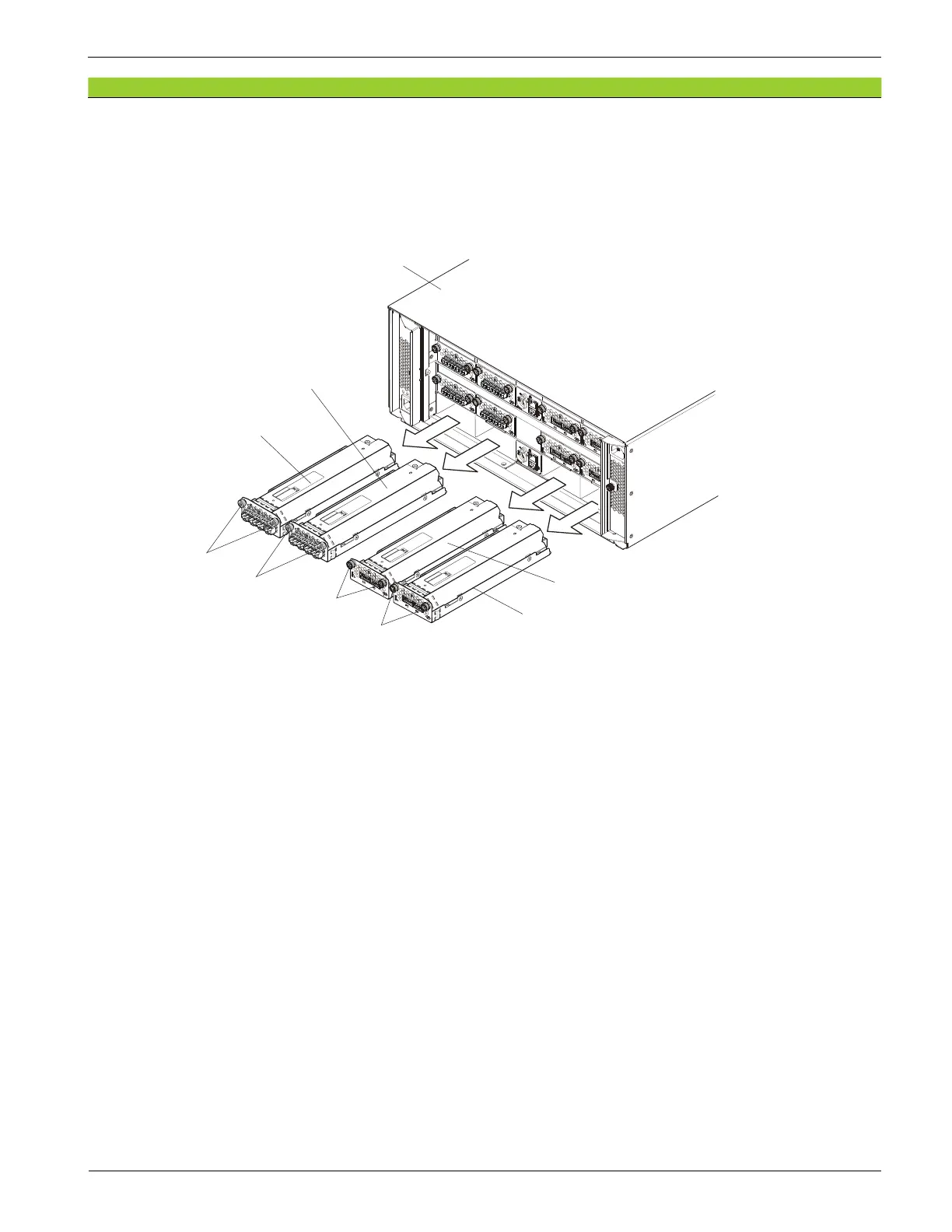

Figure 5-6 Removing Channel Board, HIE, or Disk Board
Channel Board
Screw (blue)
DKC
Screw (blue)
Channel Board
Disk Boaard
Screw (blue)
Screw (blue)
HIE
