(3) Install the Drive Box with the bracket.
(4) Fasten the Drive Box to the rack frame with the M5
×
10 binding screws temporarily (two places
each at right and left).
(5) Tighten the bind screws pressing the bracket in the direction of

and

to x the bracket.

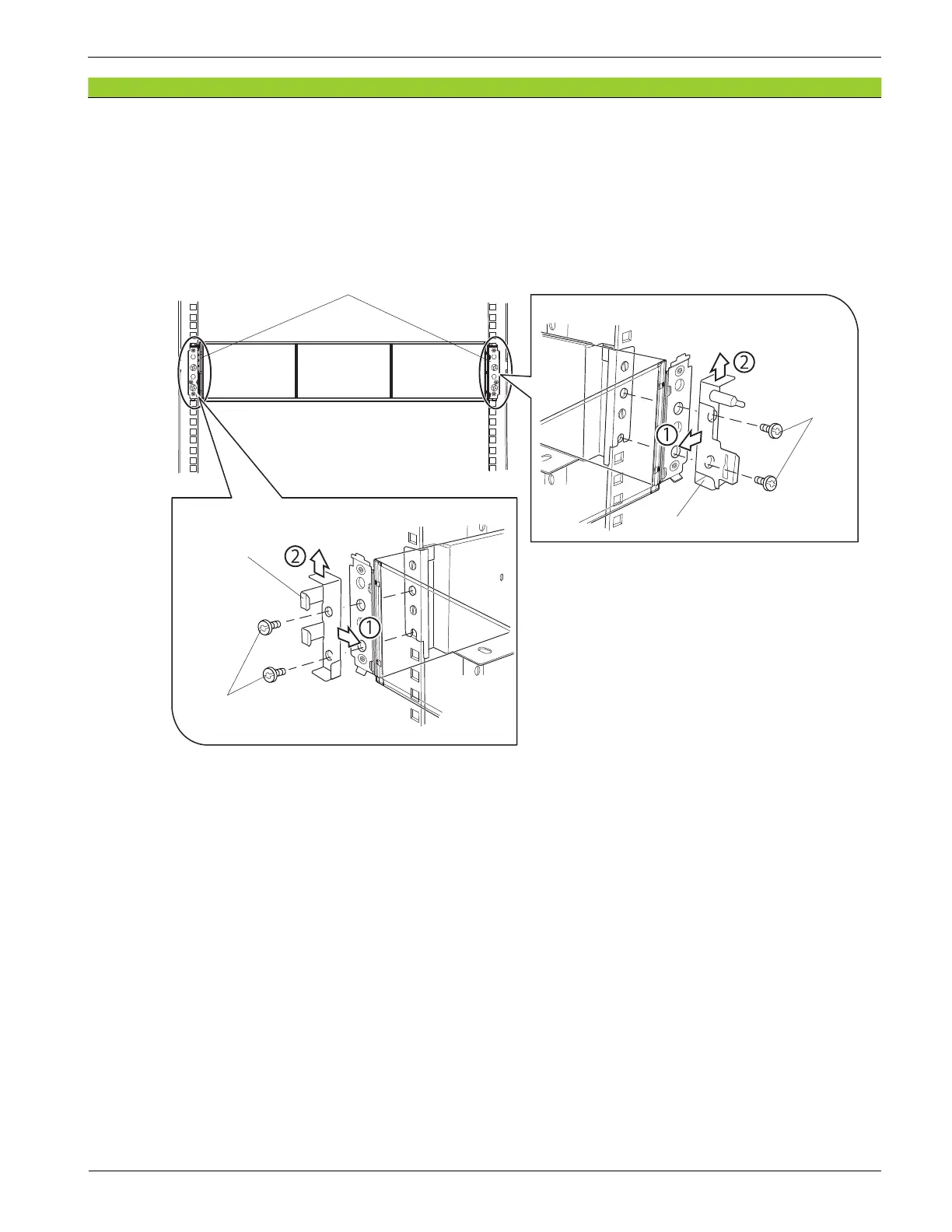

Figure 7-6 Fixing the Front Side of the Drive Box (Drive Box (SBX/UBX/NBX))
Bracket (L)
Fixing position
Bracket (R)
Binding screws
(M5 × 10)
Binding screws
(M5 × 10)
